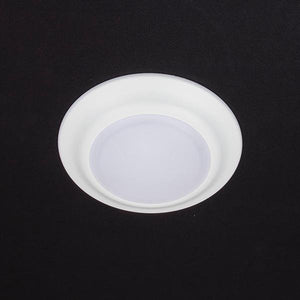

A round, driverless LED surface downlight that is available with a recess kit for mounting into existing cans. The S-4 and S-6 feature a polycarbonate housing with white opal lens. The S-6 is CLOSET RATED. At only 12W for the 6” diameter S-4 and 15W for the 7-1/4” diameter S-6, energy savings can be realized, especially for large commercial or institutional applications.
CLOSET RATING: Conforms to NEC 410.16 (A) (3) and 410.16 (C)
Specifications
Installation Instructions
S4 Series:
- 6” diameter
- 120VAC
- 2700K - 540 lumens - 90+ CRI
- 3000K - 670 lumens - 90+ CRI
- 4000K - 770 lumens - 90+ CRI
- Dimmable
- 12W
- Mounts to standard 4” shallow fixture box, octagon box, or a 4” recess downlight( which requires our recess mounting kit, the S4-RKT sold separately)
- Wet location
- Corrosion resistant finish
S6 Closet Rated Series:
- 7-1/4” diameter
- 120VAC
- 2700K - 920 lumens - 90+ CRI
- 3000K - 950 lumens - 90+ CRI
- 4000K-1050 lumens - 90+ CRI
- Dimmable
- 15W
- Mounts to standard 4” shallow fixture box, octagon box, or a 6” recess downlight (requires our recess mounting kit, the S6-RKT sold separately)
- Wet location
- Corrosion resistant finish
