GM Lighting Lamina 24VDC Standard / High Output Closet Rated Configurable Laminated Sheet

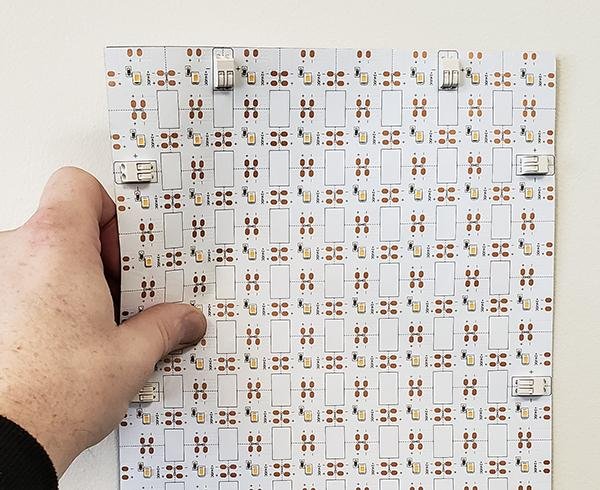

Lamina is a 24VDC flexible light sheet that can be cut in the field into geometric shapes, creating limitless illumination.  Installation is easy and the operation is relatively cool.  Lamina needs no heat sinks or dissipaters that may mar the clean, even presentation.  Lamina is connectible via integral push-in connectors.  Installation is as easy as using one of three options:  peel and stick 3M tape, staples or screws.  Conforms to curvilinear shapes like round columns.  Standard sizes:  2x2 = 5 / sheets, 4x2 = 9 / sheets, 4x4 = 18 / sheets.  Includes 48” lead wires and one sheet to sheet connector.

Specifications

Installation Instructions

Features:

• 24VDC
• 2700K, 3000K, 3500K, 4000K
• Standard output - 5W per sq. foot
• High output - 10W per sq. foot
• Dimmable (Triac)
• 90+ CRI
• Damp location
• 128 LEDs per sq. foot (1 inch spacing)
• Connectible via integral push-in connectors
• Closet rated
• ETL
• 5 year warranty
