GM Lighting LD-EDM-60-12 LineDRIVE 12VDC Mini Electronic LED Dimmable Power Supplies

$69.30 USD
$69.30 USD $138.60 USD

GMLighting-LD-EDM-60-12

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Will Call / Pick up

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

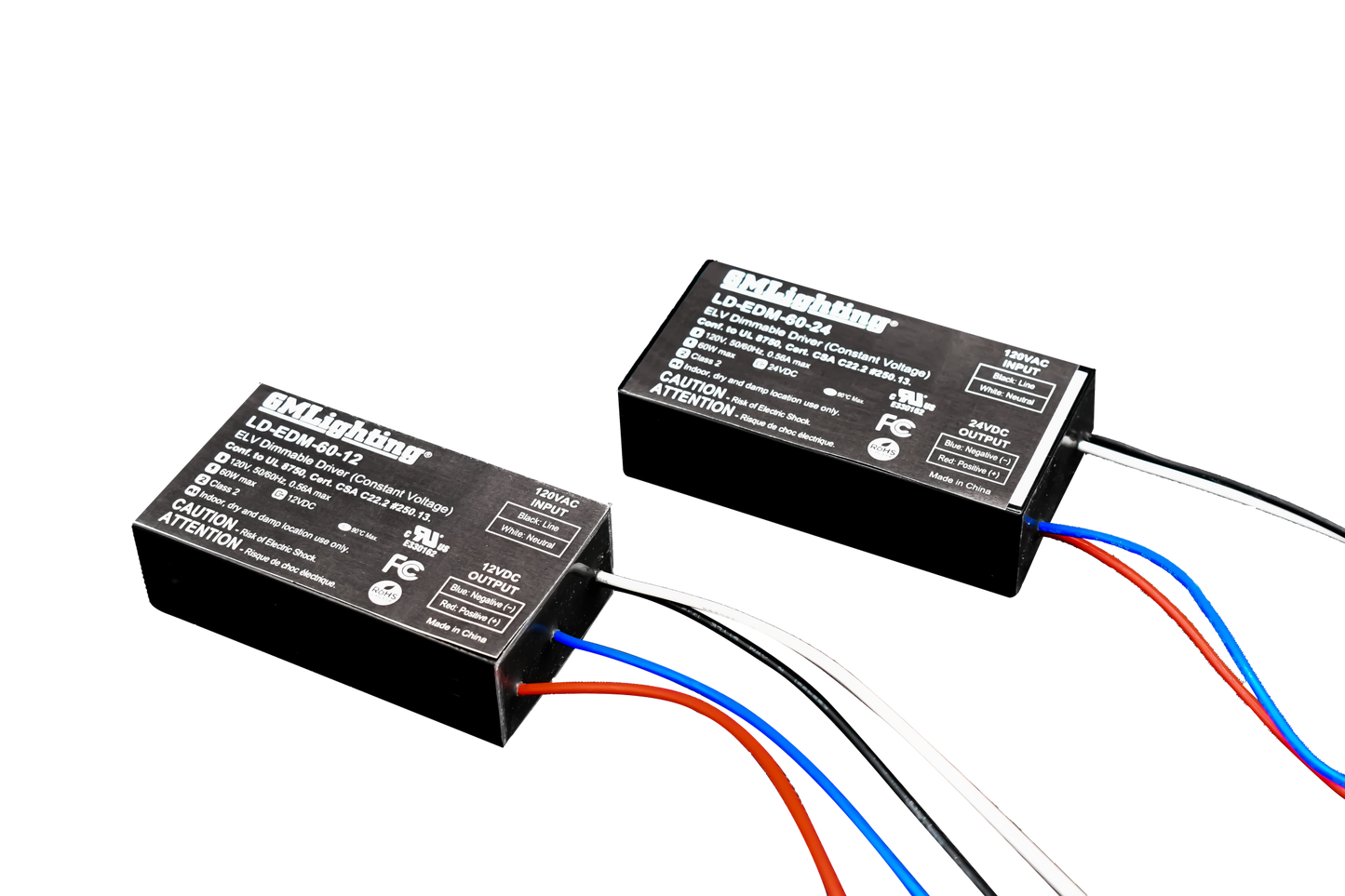

The GM Lighting LD-EDM-60-12 LineDRIVE Mini Series is a compact, 60W Class 2 electronic LED power supply designed for 12VDC constant voltage output. Compatible with standard ELV dimmer switches, it features a low-profile, lightweight aluminum enclosure for easy installation. Ideal for a variety of lighting applications, this IP20 rated unit supports dimming from 10% to 100% depending on the dimmer and load.

Technical Specification

Model
LD-EDM-60-12
Input Voltage
120VAC
Output Voltage
12VDC, Constant Voltage
Power Output
60W max.
Dimming Range
10% to 100% (varies by dimmer and load)
Dimming Type
ELV (Electronic Low Voltage) dimmers
Enclosure
Low profile, lightweight aluminum
Protection
Short circuit protection
IP Rating
IP20 (dry and damp locations)
Class Rating
Class 2 low voltage output

Additional Information

  • Designed for easy installation and hardwiring in diverse lighting setups
  • Compatible with standard ELV dimmers for smooth dimming control
  • Suitable for dry and damp locations
