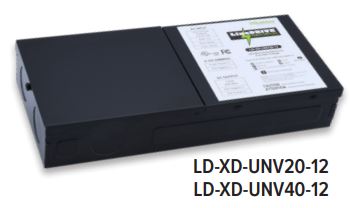

GM Lighting LD-XD-UNV20-12 LineDRIVE XD 12VDC 20W Electronic LED MULTI-Dimmable Power Supplies

12VDC - 20W - 120V or 277V - Class 2 - Multi-Dimming: Triac, ELV, MLV, 0-10V, PWM

Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.

• Output: Class 2, 12V, constant voltage
• Input: 120V/277V
• Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
• Minimum dimming: 1%
• Stable operation, flicker-free dimming
• Compatible with typical phase dimmers and 0-10V controls
• Integrated wiring compartments with separate line voltage and low voltage sections
• Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
• Over-current, over-voltage and over-temperature protection
