Product Information

Overview

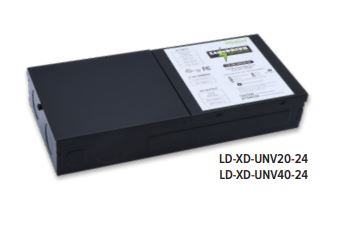

The GM Lighting LD-XD-UNV20-24 LineDRIVE XD series is a 20W Class 2 rated electronic LED power supply offering 24VDC constant voltage output. It supports universal input voltage of 120V or 277V and features multi-dimming compatibility with Triac, ELV, MLV, 0-10V, and PWM dimmers. The unit delivers stable, flicker-free dimming down to 1%, with integrated wiring compartments for easy, code-compliant installation.

Technical Specification

Model
LD-XD-UNV20-24
Input Voltage
120V or 277V
Output Voltage
24VDC, Constant Voltage
Power Output
20W
Dimming Compatibility
Triac, ELV, MLV, 0-10V, PWM
Minimum Dimming Level
1%
Features
Stable, flicker-free dimming; Integrated wiring compartments; NEC code compliant
Wiring Capacity
Supports up to (3) 12 AWG conductors in line voltage compartment
Protection
Over-current, over-voltage, over-temperature protection
Class Rating
Class 2

Additional Information

  • Designed for easy and safe installation with separate wiring compartments
  • Compatible with a broad range of dimming technologies for flexible applications
  • Provides flicker-free dimming for high-quality lighting control
