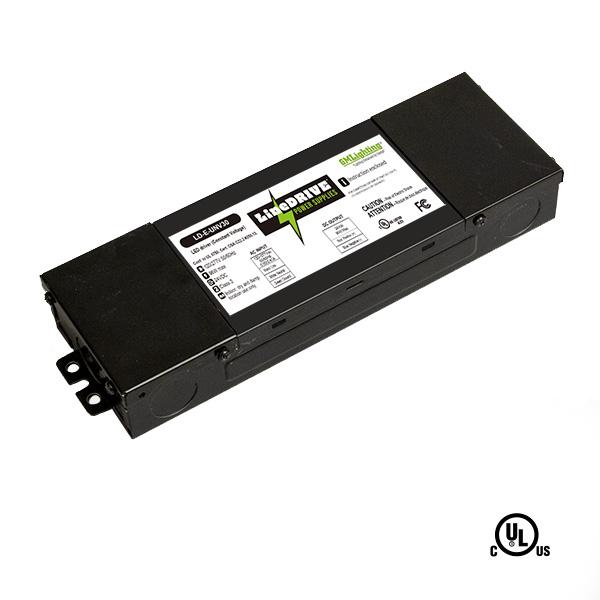

GM Lighting LineDRIVE LD-E-UNV200-24 192W 24VDC Electronic LED Non-Dimmable Power Supply

GMLighting-LD-E-UNV200-24

This product has been discontinued, but we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

Product Information

Overview

The GM Lighting LineDRIVE LD-E-UNV200-24 is a 24VDC, 192W electronic LED non-dimmable power supply with dual 96W channels. It is Class 2 rated, features auto-reset protection, and is designed for select LED fixtures that do not require dimming. The enclosure is a low-profile powder-coated steel housing with multiple knock-outs for easy installation. Ideal for LTR-S RGBW tape lighting applications.

Technical Specification

Model
LD-E-UNV200-24
Output Voltage
24VDC
Input Voltage
120V or 277V / 60Hz
Power
192W (2 x 96W channels)
Class
Class 2
Dimensions
9.50" L x 6.35" W x 1.56" H
Dimming
Non-Dimmable
Enclosure
Powder Coated Steel, Low Profile
Protection Features
Auto Reset, Over Voltage, Short Circuit
Certifications
FCC Compliant, UL Listed
Additional Features
IP20 for Damp Location, ±5% Voltage Tolerance at Full Load

Additional Information

  • Suitable for LTR-S RGBW tape lighting
  • Includes 4 knock-outs for easy installation
  • Designed for damp locations with IP20 rating
