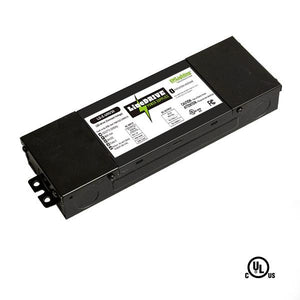

GM Lighting LineDRIVE LD-E-UNV30 30W 12VDC / 24VDC Electronic LED Non-Dimmable Power Supply

GMLighting-LD-E-UNV30

This product has been discontinued, but we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

Product Information

Overview

The GM Lighting LineDRIVE LD-E-UNV30 is a 30W Class 2 rated electronic LED power supply delivering 12VDC or 24VDC output. It supports 120V or 277V input at 50/60Hz and is designed for use with select LED fixtures that do not require dimming. Housed in a low-profile powder-coated steel enclosure with four knock-outs, it is especially suitable for LTR-S RGBW tape lighting.

Technical Specification

Model
LD-E-UNV30
Input Voltage
120V or 277V ± 10%, 50/60Hz
Output Voltage
12VDC / 24VDC
Power Output
30W
Class Rating
Class 2
Enclosure
Powder-coated Steel, Low Profile
Protection Features
Over voltage protection, Short circuit protection
Certification
UL Listed, FCC Compliant
IP Rating
IP20 for damp location
Dimensions
11.02" L x 4.88" W x 3.62" H

Additional Information

Suitable for LED fixtures that do not require dimming

Includes 4 knock-outs for easy installation

Designed for use in damp locations (IP20 rating)
