GM Lighting LineDRIVE LD-ED-UNV150-12 150W 12VDC Electronic LED Dimmable Power Supply

GM Lighting LineDRIVE LD-ED-UNV150-12 150W 12VDC Electronic LED Dimmable Power Supply

GMLighting-LD-ED-UNV150-12

This product has been discontinued, but we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

Product Information

Overview

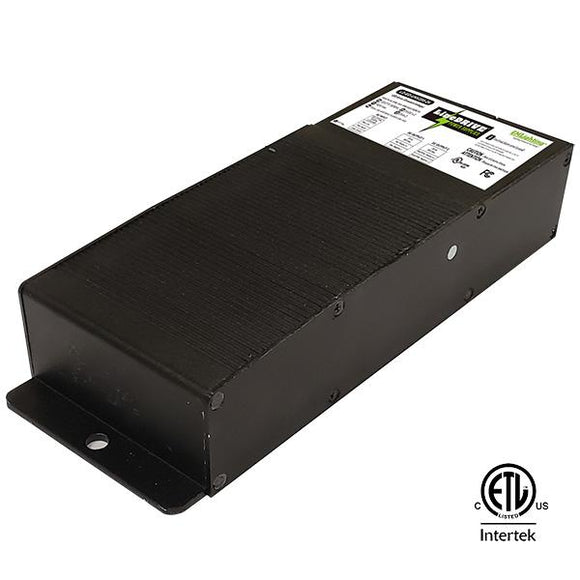

The GM Lighting LineDRIVE LD-ED-UNV150-12 is a 150W Class 2 rated electronic LED power supply delivering 12VDC output. Compatible with 120V or 277V input at 50/60Hz, it is designed for use with ELV/Incandescent TRIAC (leading edge) dimmers. The low-profile enclosure includes two knock-outs for straightforward installation and features built-in protection with auto reset capability.

Technical Specification

Model
LD-ED-UNV150-12
Input Voltage
120V or 277V, 50/60Hz
Output Voltage
12VDC
Power Output
150W
Output Current
4.0A
Class Rating
Class 2
Power Factor
0.96
Dimming Type
ELV / TRIAC (Leading Edge)
Reset
Auto Reset
Protection
Over current and short circuit protection
Dimensions
10.20" L x 4.20" W x 1.90" H

Additional Information

  • Compatible with ELV and TRIAC dimmers
  • FCC compliant for safety and electromagnetic compatibility
  • Auto reset protection ensures device longevity
  • Low-profile steel enclosure with two knock-outs for easy installation
