GM Lighting LineDRIVE LD-ED-UNV20-24 20W 24VDC Electronic LED Dimmable Power Supply

GM Lighting LineDRIVE LD-ED-UNV20-24 20W 24VDC Electronic LED Dimmable Power Supply

GMLighting-LD-ED-UNV20-24

This product has been discontinued, but we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

Product Information

Overview

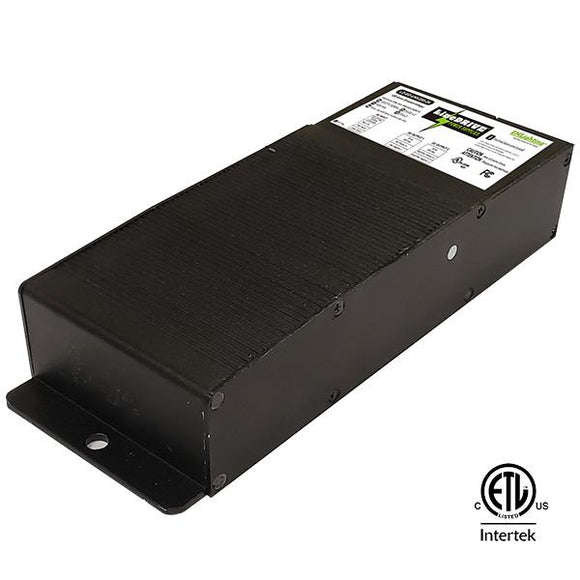

The GM Lighting LineDRIVE LD-ED-UNV20-24 is a compact, Class 2 rated electronic LED power supply delivering 20W of 24VDC output. Designed for use with standard ELV or TRIAC dimmers, this unit provides stable dimming performance in a low-profile enclosure with built-in knockouts for easy installation. With integrated protections and FCC compliance, it’s an ideal solution for small-scale, flicker-free LED lighting applications.

Technical Specification

Model
LD-ED-UNV20-24
Input Voltage
120V or 277V / 50-60Hz
Output Voltage
24VDC
Max Power
20W
Dimming
ELV / TRIAC (Leading Edge)
Power Factor
0.96
Protection
Short Circuit & Over Current Protection, Auto Reset
Certifications
Class 2, FCC Compliant
Dimensions
6.97"L x 2.76"W x 1.40"H

Additional Information

  • Compact Class 2 power supply for LED lighting
  • Supports ELV and TRIAC dimming systems
  • Low-profile steel enclosure with knockouts for ease of installation
  • Built-in protections for over current and short circuit conditions
  • High power factor (0.96) for efficient performance
  • FCC compliant for electrical safety and interference standards
