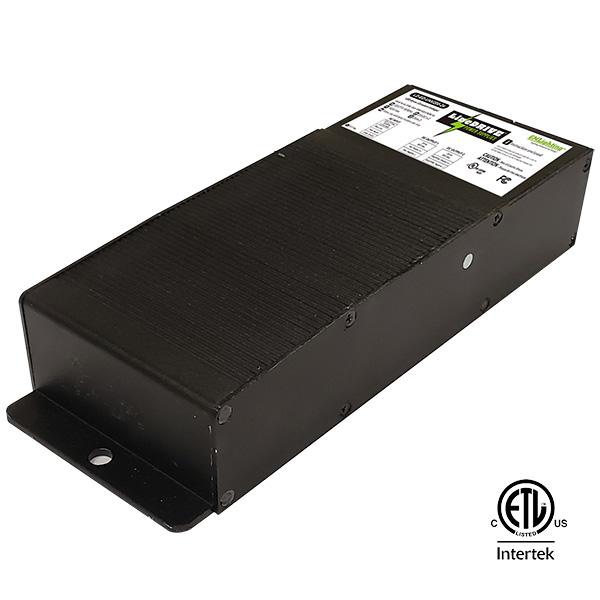

GM Lighting LineDRIVE LD-ED-UNV200-12 192W 12VDC Electronic LED Dimmable Power Supply

$190.80 USD
$190.80 USD $381.60 USD

GMLighting-LD-ED-UNV200-12

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Will Call / Pick up

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

The GM Lighting LD-ED-UNV200-12 is a 192W 12VDC electronic dimmable LED power supply. It offers two 96W Class 2 output channels and operates on both 120V and 277V input. Designed for reliability and compatibility with standard ELV/Incandescent TRIAC dimmers, it features overcurrent and short circuit protection and comes in a low-profile housing with dual knock-outs for easy installation.

Technical Specification

Model
LD-ED-UNV200-12
Voltage
12VDC Output, 120V or 277V Input
Power
192W Total (2 x 96W Channels)
Dimming
Dimmable (ELV / TRIAC, Leading Edge)
Current
4.0 Amps
Power Factor
0.96
Enclosure
Low Profile with 2 Knock-Outs
Protection
Over Current, Short Circuit, Auto Reset
Certifications
FCC Compliant
Dimensions
10.20" L x 4.20" W x 1.90" H

Additional Information

  • Designed for ELV/Incandescent TRIAC dimming systems
  • Suitable for installations requiring Class 2 compliance
  • Auto reset feature for added protection
  • Ideal for use with GM Lighting 12VDC LED lighting systems
