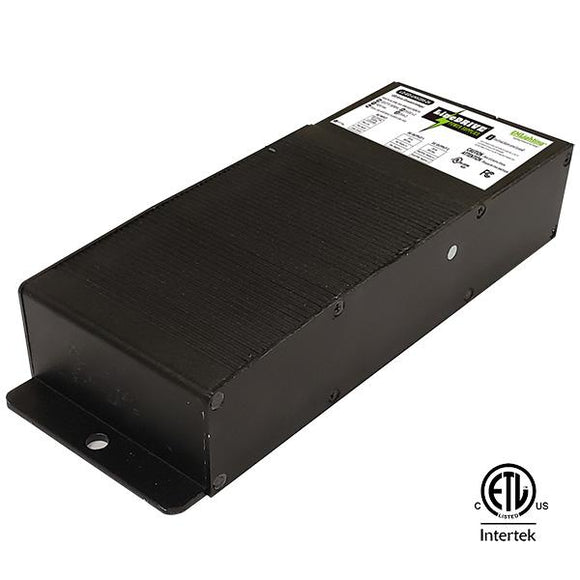

GM Lighting LineDRIVE LD-ED-UNV300-24 288W 24VDC Electronic LED Dimmable Power Supply

GM Lighting LineDRIVE LD-ED-UNV300-24 288W 24VDC Electronic LED Dimmable Power Supply

GMLighting-LD-ED-UNV300-24

This product has been discontinued, but we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

Product Information

Overview

The GM Lighting LineDRIVE LD-ED-UNV300-24 is a 288W Class 2 rated electronic LED power supply providing 24VDC output through three 96W channels. It supports 120V or 277V input at 50/60Hz and is designed for use with standard ELV/Incandescent TRIAC (leading edge) dimmer switches. Housed in a low-profile enclosure with two knock-outs, it supports easy installation and can be wired to meet Class 2 requirements.

Technical Specification

Model
LD-ED-UNV300-24
Input Voltage
120V or 277V, 50/60Hz
Output Voltage
24VDC
Power Output
288W (3 x 96W channels)
Amps
4.0A
Dimming Type
ELV (Electronic Low Voltage) TRIAC leading edge dimmer
Class Rating
Class 2
Power Factor
0.96
Protection
Auto-reset, Over current protection, Short circuit protection
Certifications
FCC compliant
Dimensions
10.20" L x 4.20" W x 1.90" H

Additional Information

  • Designed for use with standard ELV/Incandescent TRIAC dimmers
  • Low-profile enclosure with knock-outs for easy wiring
  • Can be wired according to Class 2 requirements
