GM Lighting LineDRIVE LD-ED-UNV40-12 40W 12VDC Electronic LED Dimmable Power Supply

GM Lighting LineDRIVE LD-ED-UNV40-12 40W 12VDC Electronic LED Dimmable Power Supply

GMLighting-LD-ED-UNV40-12

This product has been discontinued, but we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

Product Information

Overview

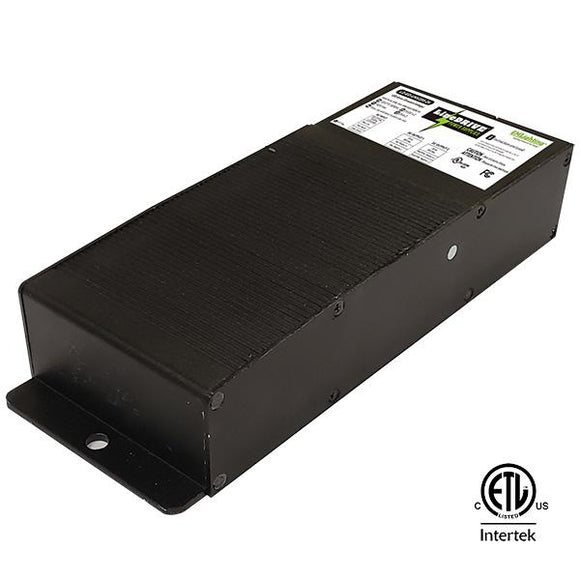

The GM Lighting LineDRIVE LD-ED-UNV40-12 is a 40W Class 2 rated electronic LED power supply delivering 12VDC output. It supports both 120V and 277V inputs and is designed for use with standard ELV/Incandescent TRIAC (leading edge) dimmers. Housed in a low-profile enclosure with two knock-outs for easy installation, it offers reliable performance with built-in protection features.

Technical Specification

Model
LD-ED-UNV40-12
Input Voltage
120V or 277V, 50/60Hz
Output Voltage
12VDC
Power Output
40W
Output Current
3.33A
Class Rating
Class 2
Power Factor
0.96
Dimming Type
ELV / TRIAC (Leading Edge)
Reset
Auto Reset
Protection
Over current and short circuit protection
Dimensions
6.97" L x 2.76" W x 1.40" H

Additional Information

  • Compatible with ELV and TRIAC dimmers
  • Includes 2 knock-outs for flexible installation
  • FCC compliant for electromagnetic safety
  • Auto reset for fault recovery
  • Compact, low-profile enclosure
