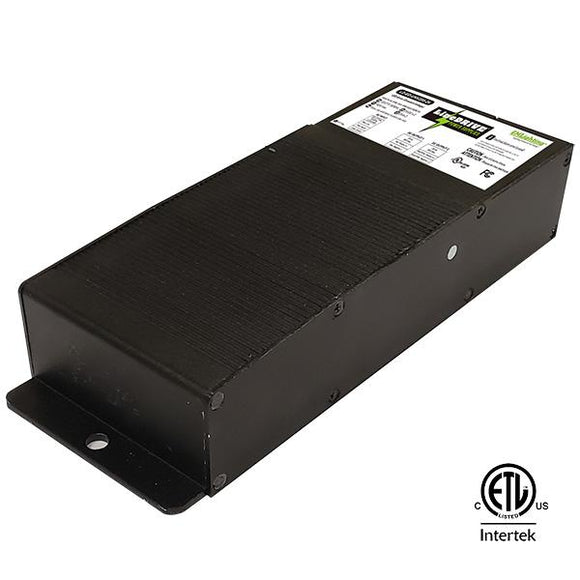

GM Lighting LineDRIVE LD-ED-UNV40-24 40W 24VDC Electronic LED Dimmable Power Supply

GM Lighting LineDRIVE LD-ED-UNV40-24 40W 24VDC Electronic LED Dimmable Power Supply

GMLighting-LD-ED-UNV40-24

This product has been discontinued, but we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

Product Information

Overview

The GM Lighting LineDRIVE LD-ED-UNV40-24 is a 40W electronic LED power supply delivering 24VDC output, compatible with both 120V and 277V input systems. Designed for use with ELV/TRIAC dimmers, it offers Class 2 compliance, auto reset, and safety features in a compact, low-profile housing for easy installation.

Technical Specification

Model
LD-ED-UNV40-24
Voltage
24VDC Output, 120V or 277V Input
Frequency
50/60Hz
Power Output
40W
Current
1.66A
Dimming Type
ELV / TRIAC (Leading Edge)
Power Factor
0.96
Class Rating
Class 2
Reset
Auto Reset
Protection Features
Over Current Protection, Short Circuit Protection
FCC Compliance
Yes
Dimensions
6.97" L x 2.76" W x 1.40" H

Additional Information

  • Compatible with ELV/Incandescent TRIAC dimmers.
  • Includes 2 knock-outs for flexible installation.
  • FCC compliant for commercial and residential use.
  • Class 2 rated for safe, low-voltage applications.
  • Designed for indoor use in dry and damp locations.
