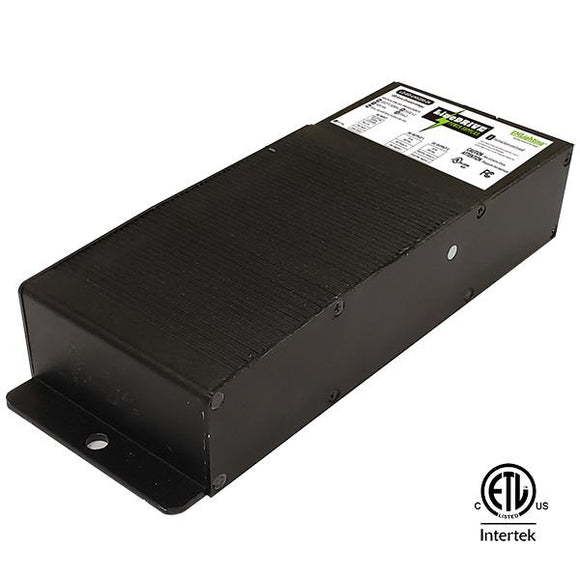

GM Lighting LineDRIVE LD-ED-UNV60-24 60W 24VDC Electronic LED Dimmable Power Supply

GM Lighting LineDRIVE LD-ED-UNV60-24 60W 24VDC Electronic LED Dimmable Power Supply

GMLighting-LD-ED-UNV60-24

This product has been discontinued, but we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

Product Information

Overview

The GM Lighting LineDRIVE LD-ED-UNV60-24 is a Class 2 rated 60W electronic LED power supply that delivers 24VDC output. Designed to work with standard ELV/Incandescent TRIAC dimmers, this unit supports universal input voltage (120V or 277V) and features integrated protections in a compact, low-profile enclosure with knockouts for easy installation. It’s an ideal choice for smooth, flicker-free LED dimming in residential and commercial applications.

Technical Specification

Model
LD-ED-UNV60-24
Input Voltage
120V or 277V / 50-60Hz
Output Voltage
24VDC
Max Power
60W
Output Current
2.5A
Dimming
ELV / TRIAC (Leading Edge)
Power Factor
0.96
Protection
Short Circuit & Over Current Protection, Auto Reset
Certifications
Class 2, FCC Compliant
Dimensions
6.97"L x 2.76"W x 1.40"H

Additional Information

  • Class 2 rated for low-voltage LED lighting systems
  • Compatible with standard ELV/Incandescent TRIAC dimmers (leading edge)
  • Compact low-profile housing with knockouts for flexible installation
  • Built-in protection against short circuit and overcurrent events
  • High efficiency with 0.96 power factor
  • FCC compliant and ETL listed for quality and safety
