Product Information

Overview

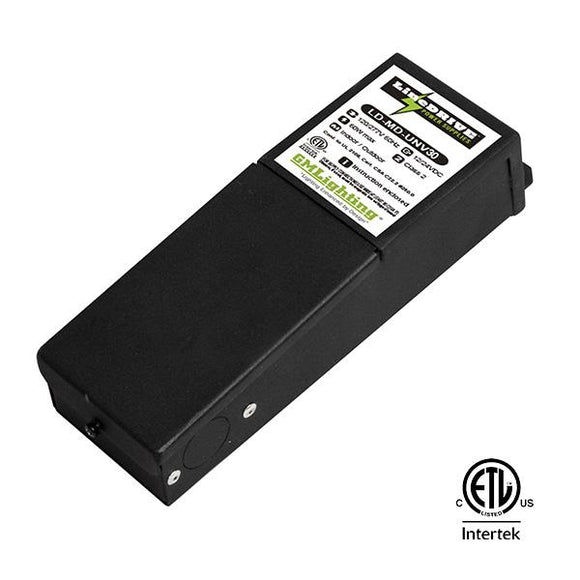

The GM Lighting LineDRIVE LD-MD-UNV300-24 is a 288W 24VDC Magnetic LED dimmable power supply designed for use with standard MLV dimmers. It features three 96W channels and is Class 2 rated with auto-reset protection. The unit comes in a low-profile powder-coated steel enclosure suitable for vertical mounting, with 2 knock-outs for easy installation. It is ETL listed for indoor and outdoor use and rated NEMA 3R for wet locations.

Technical Specification

Model
LD-MD-UNV300-24
Output Voltage
24VDC
Input Voltage
120V or 277V / 60Hz
Power
288W (3 x 96W channels)
Class
Class 2
Dimensions
11.02" L x 4.88" W x 3.62" H
Dimming
Magnetic Low Voltage (MLV), dims down to 5%
Enclosure
Powder Coated Steel, Low Profile
Mounting
Vertical Only
Protection Features
Auto-reset for short circuits and over voltage
Certifications
ETL Listed for indoor and outdoor use, NEMA 3R

Additional Information

Designed for vertical mounting only

Includes 2 knock-outs for easy installation

Suitable for wet locations with NEMA 3R rating
