GM Lighting NeoVISION24 NV24S-3W-GR-32 32’-8” 24VDC Green SideFlex Neon Tape

Catalog No.	Length	Lumens per Foot	CRI	Color Temp.	Max. Run
NV24S-3W-GR-32	32’-8”	128	90+	Green	32’-8”

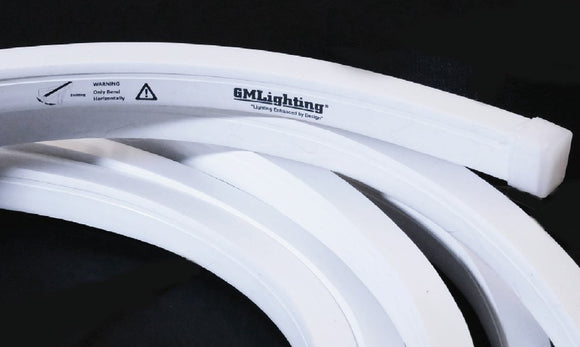

A 24VDC flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.

• 24VDC operation
• 3.0 watts per foot
• Wet location - IP65
• Multiple power feed options
• Tape encased in UV stable silicone (UV protected)
• Dimmable
• 3000K or 4000K / Amber, Blue, Green or Red
• 120° viewing angle
• Maximum run: 32’-8”
• Field cuttable and joinable in 2 inch increments while retaining IP65
• No tools required for capping and joining
• Mounting clips included (recommend use 1 per foot)

Kelvin temperature (color) ±100K.

Power Supply / Transformers Used With This Product

Every reel includes (1) NV24S-PF-EF (tape to power feed with 48” of lead.). 16’ reel includes (16) NV24S-MC-A mounting clips and screws. 32’ reel comes with (32) NV24S-MC-A mounting clips and screws. Operating temp.: -4° - 130°F.

NeoVISION24™ SideFlex SPEC SHEET

SALES SHEET

PHOTOMETRICS

INSTALLATION INSTRUCTIONS
