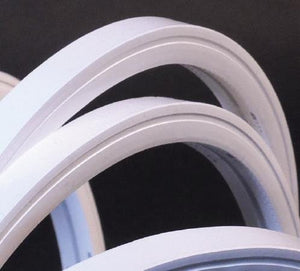

GM Lighting NeoVISION24 NV24T-3W-RD-16 16’-4” 24VDC Red TopFlex Neon Tape

A 24VDC flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables vertical bending that conforms tape around curvilinear surfaces.

• 24VDC operation
• 3W per foot
• Wet location - IP65
• Multiple power feed options
• Tape encased in UV stable silicone (UV protected)
• Dimmable
• 3000K or 4000K / Amber, Blue, Green or Red
• 120° viewing angle
• Maximum run: 32’-8”
• Field cuttable and joinable in 2 inch increments while retaining IP65
• No tools required for capping and joining
• Mounting clips included (recommend use 1 per foot)

Power Supply / Transformers Used With This Product

Technical Literature Downloads

NeoVISION24™ TopFlex SPEC SHEET

SALES SHEET

PHOTOMETRICS

INSTALLATION INSTRUCTIONS

Kelvin temperature (color) ±100K. Every reel includes (1) NV24T-PF-EF (tape to power feed with 48” of lead.). 16’ reel includes (16) NV24T-MC-A mounting clips and screws. 32’ reel comes with (32) NV24T-MC-A mounting clips and screws. Operating temp.: -4° - 130°F.
