| Catalog No. |
Length |
Watts/Fixture |
Lumens/Fixture |
Color Temp.* |
Finish |
| EDGE-24-27-W |
24" / 610mm |
10W |
550
|
2700K |
White |

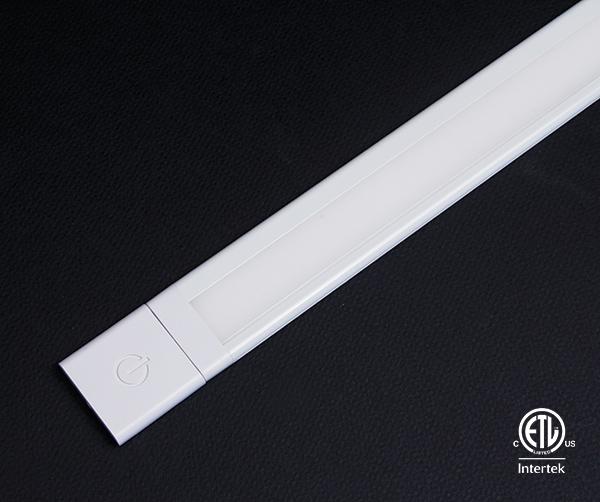

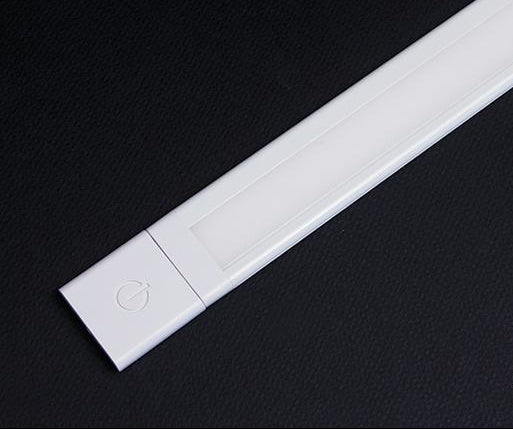

SlimEdge™ is a 24VDC architectural LED linear thin lightbar that is the next evolution in undercabinet lighting. Using high-tech Edgelite technology - SlimEdge creates an even luminance while producing a gentle, soft light. 90+ CRI optics that present no diode imaging on polished surfaces. Available in 8”, 16”, 24” or 32” in white or bronze. Utilizing the wide array of connectors, SlimEdge can be configured to adapt to virtually any application.
NOTE: In order to use the Touch Dimmer (EDGE-TD-W or B) from the fixture, you must use GM DPPS Series Plug-In Power Supplies. We have included a DPPS spec sheet below, in the Spec Sheet Download area.
Specifications
Product Brochure
DPPS Power Supplies
Key Features:
- Rigid modular edge lit lightbar
- 0-90° with optional mounting clip
- Mounting clips and screws included
- Units join securely together with modular connectors
- Class 2. Maximum run on a given lead is 16'
Electrical:
- 24VDC remote power supply required
- Rated at 5W per foot
- 50,000 hr. operation
Optics:
- Edge-lit technology results in diode-free imaging on polished surfaces
- 90+ CRI
- 2700K, 3000K
Certification:
Warranty:
* Kelvin Temp. (color) ±200K
Includes (2) mounting clips with screws, (1) lightbar to power supply connector (GMC-PS-24) and (1) rigid bar to bar connector (EDGE-BB-1) included with each lightbar. NOTE: White bar is supplied with white connectors. Bronze bar is supplied with black connectors.
