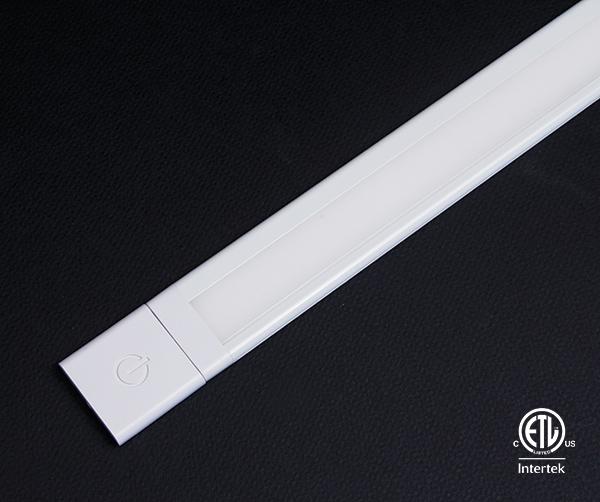

GM Lighting SlimEdge EDGE-32-30-W 24VDC 32" 3000K Modular Architectural Lightbar - White

GM Lighting SlimEdge EDGE-32-30-W 24VDC 32" 3000K Modular Architectural Lightbar - White

$120.60 USD
$120.60 USD $241.20 USD

GMLighting-EDGE-32-30-W

Default Title
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Need Help?

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

The GM Lighting SlimEdge™ EDGE-32-30-W is a 32-inch, 24VDC modular architectural LED lightbar designed for undercabinet and task lighting applications. Utilizing advanced edge-lit technology, it delivers uniform luminance without diode imaging, making it ideal for polished surfaces.

Technical Specification

Model
EDGE-32-30-W
Voltage
24VDC
Power Consumption
13W
Luminous Flux
750 Lumens
Color Temperature
3000K (±200K)
CRI
90+
Dimming
Yes (with compatible dimmer)
Length
32 inches (1100mm)
Dimensions
32" L x 1.5" W x 0.375" H
Mounting
Surface mount with included clips and screws
Housing Finish
White
Environment
Dry locations
Certifications
cETLus Listed

Additional Information

  • Edge-Lit Technology: Provides uniform light distribution without visible diodes, ideal for reflective surfaces.
  • Modular Design: Units can be joined securely with modular connectors for extended runs up to 16 feet per Class 2 circuit.
  • Compatible Power Supplies: Requires 24VDC remote power supply; compatible with GM Lighting DPPS Series plug-in power supplies.
  • Dimming Compatibility: Fully dimmable when used with compatible dimmers and power supplies..
  • Applications: Ideal for undercabinet lighting, task lighting, and other architectural lighting applications where a low-profile, high-quality light source is desired.
