Product Information

Overview

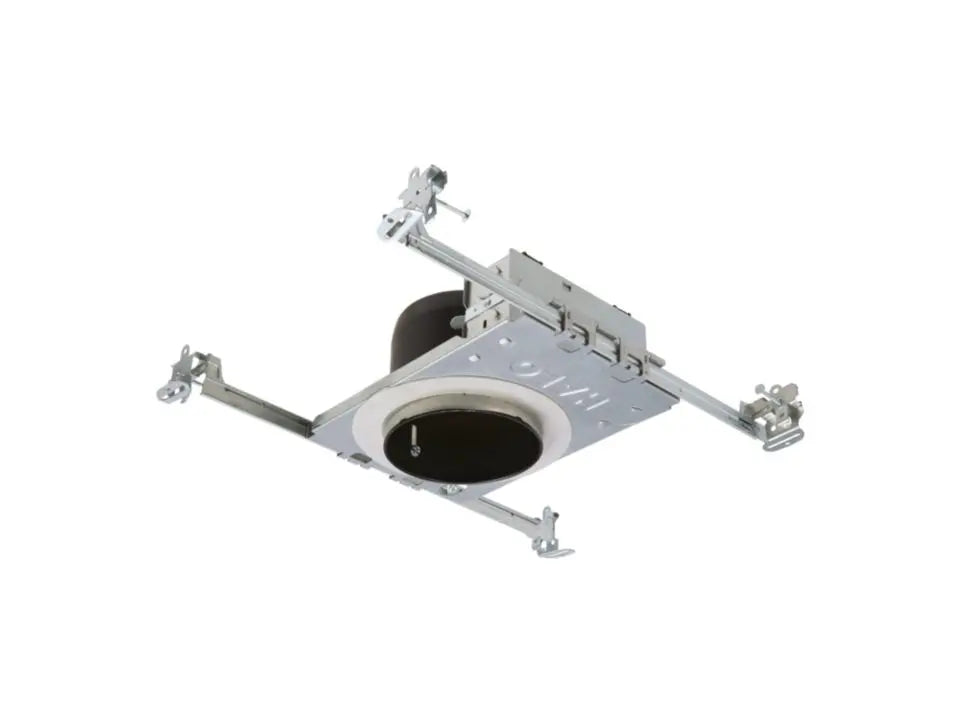

The HALO H245ICAT is a 4 inch ultra-shallow recessed new construction housing designed for 2x4 residential framing and tight commercial plenums. It is IC rated, airtight, and compatible with multiple HALO 4 inch LED modules and trims, providing energy-efficient accent, task, and general lighting with excellent flexibility and long service life.

Technical Specification

Model
HALO H245ICAT
Fixture Type
4 inch Ultra-Shallow Recessed New Construction Housing
Application
Accent, Task, and General LED Lighting
Housing Construction
Single wall deep-drawn aluminum housing, matte black finish
Ceiling Thickness
Adjustable from 1/2 inch to 1-1/4 inch
Mounting
Got-Nail bar hangers with Pass-N-Thru tool-less adjustment
Plenum Compatibility
Suitable for 2x4 framing and ultra-shallow plenums
Insulation Rating
Type IC, suitable for direct contact with insulation
Airtight Rating
AIR-TITE, compliant with ASTM-E283
Junction Box
Galvanized steel, 15 cubic inch volume, accepts up to (10) #12 AWG conductors
Voltage Rating
120V to 277V
Connector Type
Two-conductor Quick Connect for HALO LED modules and trims
Compatible Trims
LT4, RL4, RA4, SMD4, SLD4 LED trims and ML4 modular system
Listings
cULus Listed, Damp Location, Wet Location with select trims
Compliance
Title 24 high efficacy capable, RoHS compliant, mercury and lead free
Spec Sheet
HALO H245ICAT Spec Sheet

Additional Information

  • Ultra-shallow design ideal for tight plenums and remodel-friendly installations
  • Housing can be removed from below ceiling for service or inspection
  • Integral gasket improves airtight performance and energy efficiency
  • Suitable for clothes closet installations when installed per NEC 410.16
  • Not rated for direct contact with spray foam insulation
