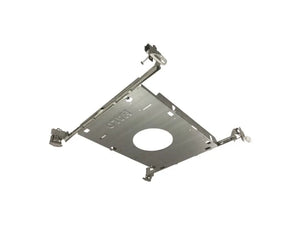

HALO H4NCMF 4” New Construction Mounting Frame
4” new construction mounting frame accepts ‘install from below’ remodeler type housings securing ceiling location during electrical rough-in. Use to meet local code requirements where install from below housings must be supported directly by building structure.
Specifications:
Plaster Frame
• Galvanized steel plaster frame with integral bar hanger receivers. Locking screws provide positive horizontal locking.
• Aperture accepts ‘install from below’ remodeler type housings, use mounting springs to secure.
Bar Hangers
• Captive preinstalled bar hangers adjust from 8-1/2” to 24” wide
• Pass thru allows shortening without removal.
• Captive nail penetrates standard and engineered lumber.
• Mounting flange levels platform with ceiling.
• Integral clip attaches direction to tee grid.
Compliance
• Can be used to meet local code requirements where install from below housings must be supported directly by building structure.
Warranty
• One year limited warranty
