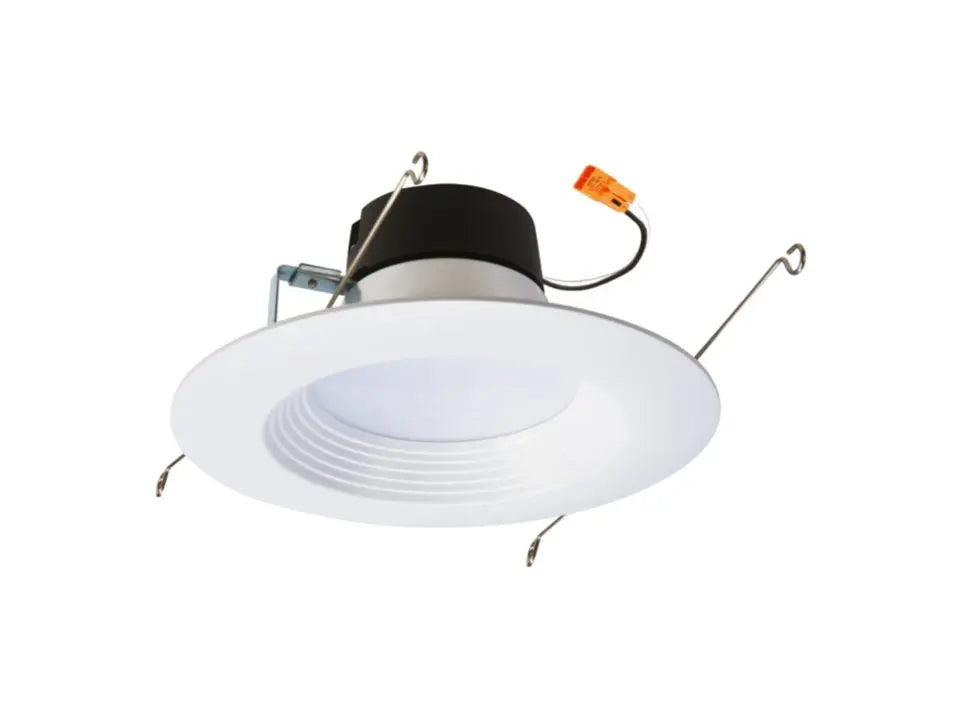

HALO LT560WH12950 5"/6" LED Retrofit Baffle-Trim Kit,5000K,90 CRI,Matte White,High Lumen

$18.95 USD

Up to 44% off

$18.95 USD

$18.95 USD ~~$34.11 USD~~

Shipping calculated at checkout.

HALO-LT560WH12950

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

DESCRIPTION
The Halo LT560 is an LED Baffle-Trim Module for 5” and 6” aperture recessed downlights; suitable for new construction, remodel and retrofit installation. The LT560 is UL Certified for use with Halo and All-Pro,and can also be used with other compatible 5” and 6” housings. Precision construction makes any housing AIR-TITE for added HVAC savings and code compliance.

SPECIFICATION FEATURES
Module
• Module construction includes LED, heat sink, reflector, lens, baffle and trim ring
Lens
• Regressed lens
• Impact-resistant polycarbonate
• Convex form for lamp-like appearance
• Diffusing for even illumination

Mounting
• Torsion springs are pre-installed and adjust to fit 5" and 6" compatible housings
LED Chromaticity
• A tight chromaticity specification ensures LED color uniformity, sustainable Color Rendering Index (CRI) and Correlated Color Temperature (CCT) over the useful life of the LED
• LED chromaticity of 3 SDCM exceeds ENERGY STAR® color standards per ANSI C78.377- 2011
• High color performance with R9 greater than 50
• Halo LED serialized testing and measurement ensures color and lumen consistency on a per-unit basis, and validates long-term product consistency over time
Electrical
• LED connector is a non-screw base luminaire disconnect offering easy installation with the matching Halo 5" and 6" LED housing
• LED Connector meets California Title-24 high efficacy luminaire requirement for a non-screw base socket, and where required to qualify as a high efficacy luminaire
• The included E26 medium screw-base Edison adapter provides easy retrofit of incandescent housings (see Housing Compatibility)
• L70 at 35,000 hours
LED Driver
• 120V 50/60 Hz constant current dimmable driver provides high efficiency operation
• If dimming is not required the fixture can be operated from a standard wall switch
Dimming
• Designed for continuous dimming capability to nominally 10% with many 120V Leading Edge (LE) and Trailing Edge (TE) Phase Control dimmers. (Dimmers with low end trim adjustment offer greater assurance of achieving 10% level.)
• Consult dimmer manufacturer for compatibility and conditions of use Note: some dimmers require a neutral in the wallbox.
Warranty
• Five-year limited warranty.
Compliance Labels
• UL Certified 1598 Luminaire for US and Canada
• UL Certified for Damp Location
• UL Certified for Wet Location covered ceiling – Shower Applications
• May be installed in housings in direct contact with insulation** and combustible material
COMPLIANCE
• Airtight certified per ASTM-E283-04 (not exceeding 2.0 CFM under 75 Pascals pressure difference)
• Can be used to comply with California Title 24 High Efficacy requirements. Certified to California Title 20 Appliance Efficiency Database.*
• Can be used for International Energy Conservation Code (IECC) high efficiency luminaire compliance.
• ENERGY STAR® Certified luminaire - consult
• ENERGY STAR® Certified Product List*
• EMI/RFI per FCC 47CFR Part 15 Class B Consumer limits, suitable for use in residential and commercial installations
• Contains no mercury or lead and RoHS compliant.
• Photometric testing in accordance with IES LM-79
• Lumen maintenance projections in accordance with IES LM-80 and TM-21
• Can be used in closets. Compliant with NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(3).

Refer to ENERGY STAR® Qualified Products List.
Can be used to comply with California Title 24 High Efficacy requirements.
Certified to California Appliance Efficiency Database under JA8.
* Refer to ENERGY STAR® Certified Products List and CEC (T20) Appliance Database for listings.
** Not for use with housings in direct contact with spray foam insulation.

Download Spec Sheet
