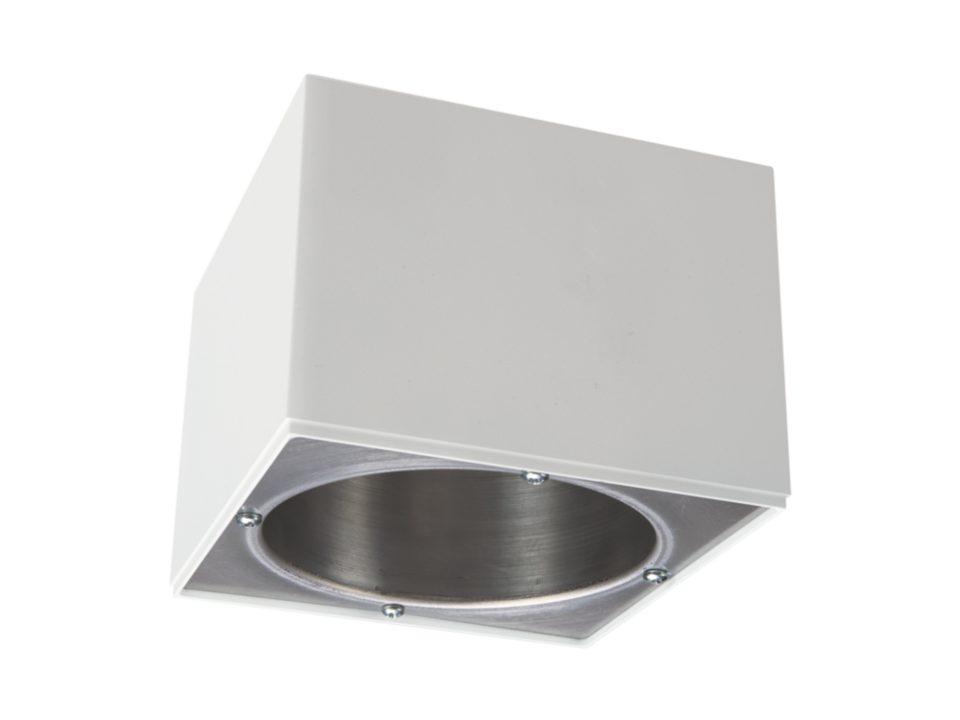

HALO HS4SMW Square Surface Mount Housings (Use with ML4 LED)
HALO ML4 LED Housing + Module + Trim | Products |SKU: HALO-HS4SMW
Round or square housings adapt ML4 LED module and associated 2” aperture open, lens and lens wall wash trims to complete a surface mount luminaire. Installs to recessed or surface mounted junction boxes with hardware provided. Use with compatible Halo® LED integrated trims and modules providing general, task and accent lighting when energy savings, long life and optical control are required. Order LED module and trims separately.
Specifications:
Housing
• Extruded aluminum round or square housing with die formed aperture accepts ML4 LED modules and trims. Mounting
• Attaches directly to 3-1/2” and 4” round ceiling pans, 3-1/2” and 4” octagon boxes, 4” and 4-11/16” square fixture mud rings and single gang handy boxes with hardware provided.
• Spider plate allows for ±45° rotation to align square with architecture.
Gasket
• Provided with die cut white and black gasket for use in wet locations, covered ceilings only Connector
• Two-conductor wire mount connector is rated for 120 - 277V and mates with ML4 LED integrated module.
• CAUTION – verify LED module input voltage is compatible with the input voltage of the housing. If uncertain, consult a qualified electrician.
Compliance
• cULus damp location listed with open trims, wet location listed, covered ceilings only and IP66 certified when used with supplied gasket and lens trims.
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
• Can be used for State of California Title 24 high efficacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Efficiency Database for current listing
Warranty
• One year limited warranty
Specifications:
Housing
• Extruded aluminum round or square housing with die formed aperture accepts ML4 LED modules and trims. Mounting
• Attaches directly to 3-1/2” and 4” round ceiling pans, 3-1/2” and 4” octagon boxes, 4” and 4-11/16” square fixture mud rings and single gang handy boxes with hardware provided.
• Spider plate allows for ±45° rotation to align square with architecture.
Gasket
• Provided with die cut white and black gasket for use in wet locations, covered ceilings only Connector
• Two-conductor wire mount connector is rated for 120 - 277V and mates with ML4 LED integrated module.
• CAUTION – verify LED module input voltage is compatible with the input voltage of the housing. If uncertain, consult a qualified electrician.
Compliance
• cULus damp location listed with open trims, wet location listed, covered ceilings only and IP66 certified when used with supplied gasket and lens trims.
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
• Can be used for State of California Title 24 high efficacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Efficiency Database for current listing
Warranty
• One year limited warranty
