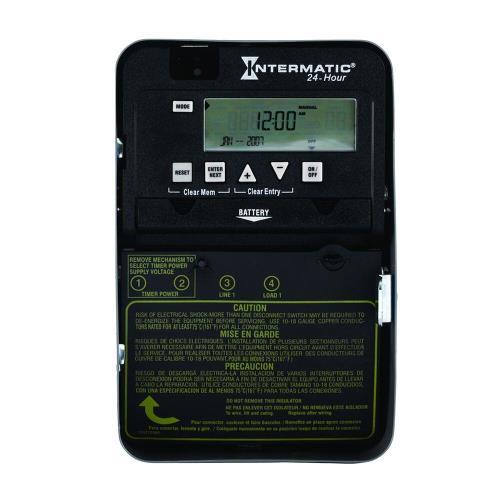

Intermatic ET1105C | 24-Hour 1 Circuit Electronic Control, 120-277 VAC, 60 Hz, SPST, Indoor Metal Enclosure

Intermatic ET1105C | 24-Hour 1 Circuit Electronic Control, 120-277 VAC, 60 Hz, SPST, Indoor Metal Enclosure

$253.79 USD
$253.79 USD $500.79 USD

INT-ET1105C
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Need Help?

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

The Intermatic ET1105C is a versatile 24-hour electronic time switch designed for controlling a single circuit in various commercial and industrial applications. With its robust indoor metal enclosure and SPST (Single Pole Single Throw) switch type, it offers reliable performance for lighting, machinery, and pump control. The unit operates within a wide voltage range of 120–277 VAC, making it suitable for diverse electrical systems.

Technical Specification

Model
ET1105C
Voltage Range
120–277 VAC, 60 Hz
Switch Type
SPST (Single Pole Single Throw)
Circuit Count
1 Circuit
Enclosure
Indoor Metal (Type 1)
Max Events
28 total (14 ON / 14 OFF)
Minimum On/Off Time
1 minute
Power Backup
AAA Battery (field replaceable)
Operating Temperature
-40°F to 104°F (-40°C to 40°C)
Dimensions
7.875" H x 5.125" W x 3.4375" D
Wire Size Range
#14 to #8 AWG
Certifications
cCSAus, Title 20 Compliant

Additional Information

  • Flexible Voltage Input: Supports 120–277 VAC, allowing use across a wide range of electrical systems.
  • Daily Scheduling: Provides up to 28 programmable events for precise control throughout the day.
  • Automatic Daylight Saving Adjustment: Reduces maintenance by automatically adjusting for time changes.
  • Durable Enclosure: Steel indoor Type 1-rated housing ensures protection in typical commercial environments.
  • Manual Override: Allows immediate switching without altering programming.
  • Battery Backup: Field-replaceable AAA battery keeps settings during power loss.
  • Wide Load Compatibility: Rated for resistive, tungsten, ballast, and motor loads ideal for lighting, pumps, and fans.
