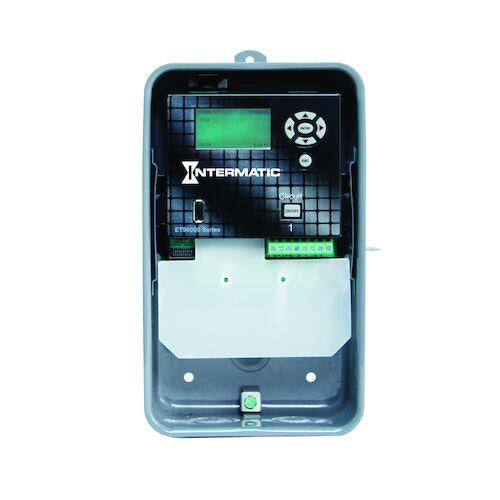

Intermatic ET90115CR | Astronomic 365-Day 1-Circuit Electronic Control, 120-277 VAC, 50/60 Hz, SPDT, Outdoor Metal Enclosure, Ethernet Optional

• Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
• Over 2,000 events plus holiday schedules
• Advanced scheduling including relative events, such as fourth Thursday of November or first week of year
• 30 A rated contacts
• 100-hour supercapacitor eliminates the need for batteries
• USB connection for uploading, downloading and transferring programs
• Easy-to-follow on-screen menus for programming to-the-minute accuracy
• Non-volatile memory protects programming indefinitely
• Firmware can be upgraded in-field via USB or Ethernet
• Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models
• PC App for easy scheduling or control, either remotely or through USB flash drive
• Mobile app for real time status and overrides

Applications

• School Districts
• Banks
• Small Hotels
• Franchises
• Retail Stores
• Municipalities
• Parking Lots
• Offices
