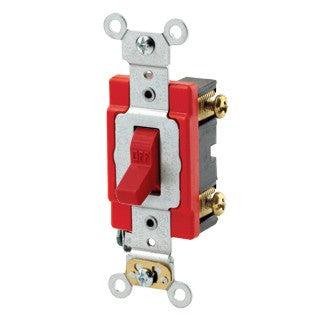

Leviton 1221 - 20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired

Leviton 1221 - 20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired

$8.85 USD
$8.85 USD $16.00 USD

LEV-1221-2W

Color
Quantity
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Need Help?

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Technical Specification

Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

Product Features

AC Horsepower Ratings
HP Rating: 1HP-120V 2HP-240V-277V

Electrical Specifications
Amperage: 20 A
Dielectric Voltage: Withstands 1500V for 1 minute
Endurance: 50,000 cycles minimum
Grounding: Self-Grounding
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
Temperature Rise: Maximum 30 degress C rise
Voltage: 120/277 VAC

Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 65°C

Material Specifications
Base Material: Thermoplastic
Color: Ebony
Contact Material: Silver Alloy
Cover Material: Thermoplastic
Ground Clips: Brass
Grounding Screw: Brass 8-32
Strap Material: Steel
Terminal Screws: Brass 8-32
Toggle: Polycarbonate

Mechanical Specifications
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Back or Side Wire
Torque Range: 12-14 inch pounds

Product Features
Body Material: Thermoplastic
Color: Ebony
Device Type: Toggle Switch
Function: Single-Pole
Grade: Extra Heavy-Duty Industrial Specification Grade
Grounding: Self-Grounding
HP Rating: 1HP-120V 2HP-240V-277V
Strap Material: Steel
Voltage: 120/277 VAC

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
RoHS: Compliant
UL Fed Spec WS896E: File #E7458
UL Standard: UL 20
Warranty: 10-Year Limited

Downloads

DIMENSIONAL DATA
WIRING DIAGRAM
