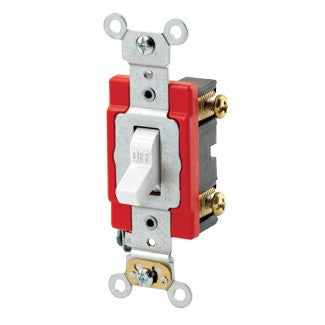

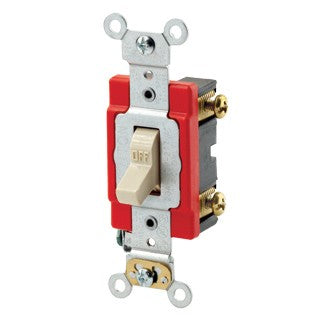

Leviton 1222 - 20 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired

Name: Leviton 1222 - 20 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired
Brand: Leviton
SKU: 1222-2W
Price: 20.16 USD
Availability: InStock

From $20.16 USD

Size Single Box of 10

Color White Ivory

Product variants

Up to 45% off

$20.16 USD

$20.16 USD ~~$36.71 USD~~

Shipping calculated at checkout.

1222-2W

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

20 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired

Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

Technical Information

AC Horsepower Ratings

HP Rating: 1HP-120V 2HP-240V-277V

Electrical Specifications

Amperage: 20 A
Dielectric Voltage: Withstands 1500V for 1 minute
Endurance: 50,000 cycles minimum
Grounding: Self-Grounding
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
Temperature Rise: Maximum 30 degress C rise
Voltage: 120/277 VAC

Environmental Specifications

Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 65°C

Material Specifications

Base Material: Thermoplastic
Color: White
Contact Material: Silver Alloy
Cover Material: Thermoplastic
Ground Clips: Brass
Grounding Screw: Brass 8-32
Strap Material: Steel
Terminal Screws: Brass 8-32
Toggle: Polycarbonate

Mechanical Specifications

Product ID: Ratings are permanently marked on device

Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Back or Side Wire
Torque Range: 12-14 inch pounds

Product Features

Body Material: Thermoplastic
Color: White
Device Type: Toggle Switch
Function: Double-Pole
Grade: Extra Heavy-Duty Industrial Specification Grade
Grounding: Self-Grounding
HP Rating: 1HP-120V 2HP-240V-277V
Strap Material: Steel
Voltage: 120/277 VAC

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
RoHS: Compliant
UL Fed Spec WS896E: File #E7458
UL Standard: UL 20
Warranty: 10-Year Limited
