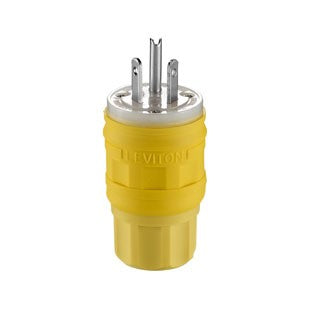

Leviton 14W34 - 15 Amp, 277 Volt, NEMA 7-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Wetguard - YELLOW

Name: Leviton 14W34 - 15 Amp, 277 Volt, NEMA 7-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Wetguard - YELLOW
Brand: Leviton
SKU: 14W34
Price: 25.07 USD
Availability: InStock

From $25.07 USD

Size Single Box of 10

Product variants

Up to 36% off

$25.07 USD

$25.07 USD ~~$39.17 USD~~

Shipping calculated at checkout.

14W34

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

15 Amp, 277 Volt, NEMA 7-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Wetguard - YELLOW

Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.

Product Features

Electrical Specifications

Amperage: 15 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 277 VAC
Wire: 3

Environmental Specifications

Environment: Wet
Flammability: Rated V-2 per UL 94
IP Rating: IP66, IP67, IP69K
Operating Temperature: -40°C to 60°C

Material Specifications

Assembly Screws: Stainless Steel 300
Blades/Contacts: Nickel-Plated Brass
Body Material: EPTR Rubber
Bushing: Santoprene TPV
Compression Nut, Strain Relief: Nylon
Terminal Screws: Electroless Nickel-coated Brass
Wire Module: Nylon

Mechanical Specifications

Cord Grip Range (in): .234-.687
Cord Range: .375 - .655
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Product Features

Assembly Screws: Stainless Steel 300
Blades/Contacts: Nickel-Plated Brass
Body Material: EPTR Rubber
Brand: Wetguard
Color: Yellow
Device Type: Straight Blade Plug
NEMA: 7-15P

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL: 498
Warranty: Limited Lifetime
