Standards and Certifications
ANSI: C-73
Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2 No.42
At Rated Voltage: 1/2 HP
Certification/Listing: cULus, NON-ANCE
RoHS: RoHS Compliant
Warranty: 10-Year Limited
AC Horsepower Ratings
Amperage: 15 A
At Rated Voltage: 1/2 HP
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 3000V min
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30°C temperature rise at full rated current
Voltage: 125 VAC
Wire: 3
Electrical Specifications
Amperage: 15 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 3000V min
Flammability: Rated V-2 per UL 94
Grounding: Self-Grounding
Operating Temperature: -40°C to 75°C
Pole: 2
Temperature Rise: Max 30°C temperature rise at full rated current
Voltage: 125 VAC
Wire: 3
Environmental Specifications
Body Material: PBT Polyester Blend
Face Material: PBT Polyester Blend
Flammability: Rated V-2 per UL 94
Ground Clips: Brass-Plated
Grounding Screw: #8 Hex Head, Triple-Drive Brass
Line Contacts: 0.030" Phosphor Bronze
Operating Temperature: -40°C to 75°C
Strap Material: Steel (Galvanized G60)
Terminal Screws: #8 Triple-Drive Brass
Material Specifications
Body Material: PBT Polyester Blend
Face Material: PBT Polyester Blend
Ground Clips: Brass-Plated
Grounding Screw: #8 Hex Head, Triple-Drive Brass
Line Contacts: 0.030" Phosphor Bronze
Product ID: Ratings are permanently marked on device
Strap Material: Steel (Galvanized G60)
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: #8 Triple-Drive Brass
Termination: Back and Side Wire
Mechanical Specifications
Brand: Decora Plus

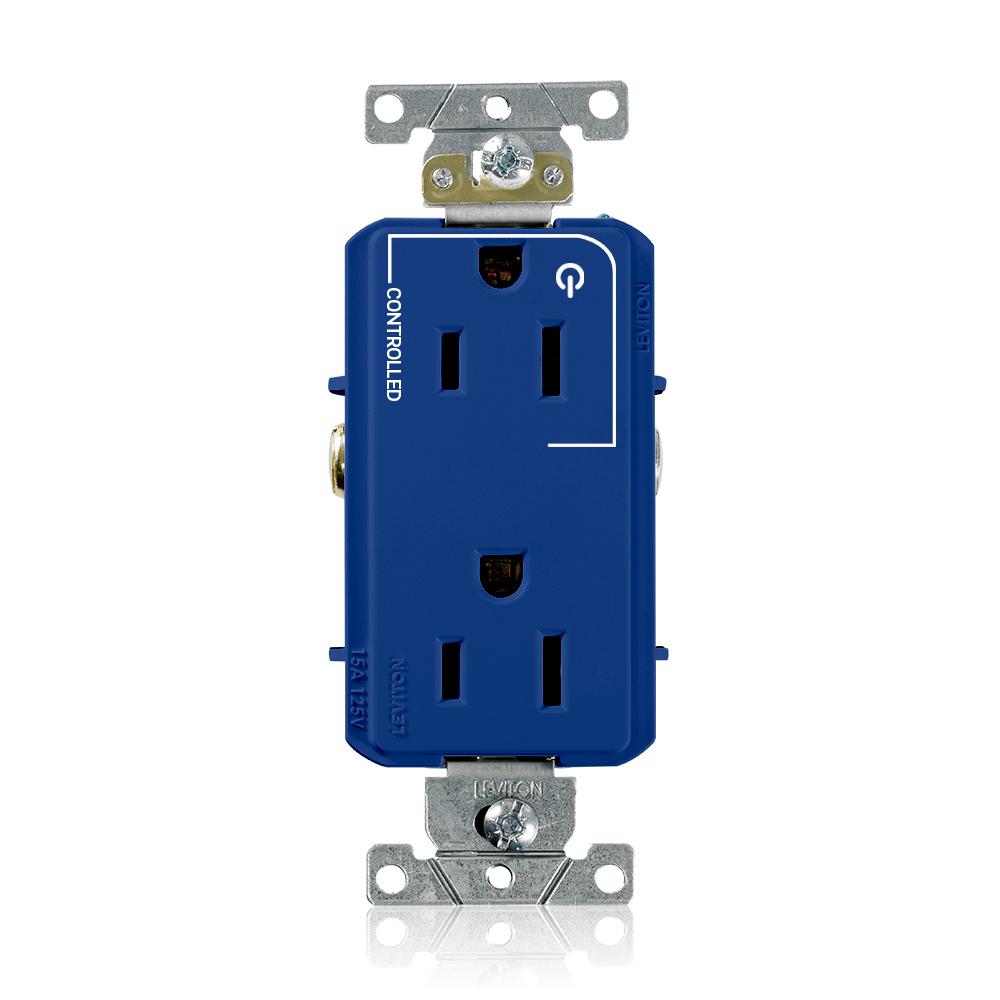

Device Type: Duplex Receptacle Outlet
Feature: Split-circuit, One Outlet Marked Controlled
Feature 4: Smooth Face
Grade: Heavy-Duty Industrial Specification Grade
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back and Side Wire
Product Features
ANSI: C-73
Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2 No.42
Brand: Decora Plus
Certification/Listing: cULus, NON-ANCE
Device Type: Duplex Receptacle Outlet
Feature: Split-circuit, One Outlet Marked Controlled
Feature 4: Smooth Face
Grade: Heavy-Duty Industrial Specification Grade
Warranty: 10-Year Limited
Warranty
Warranty: 10-Year Limited
