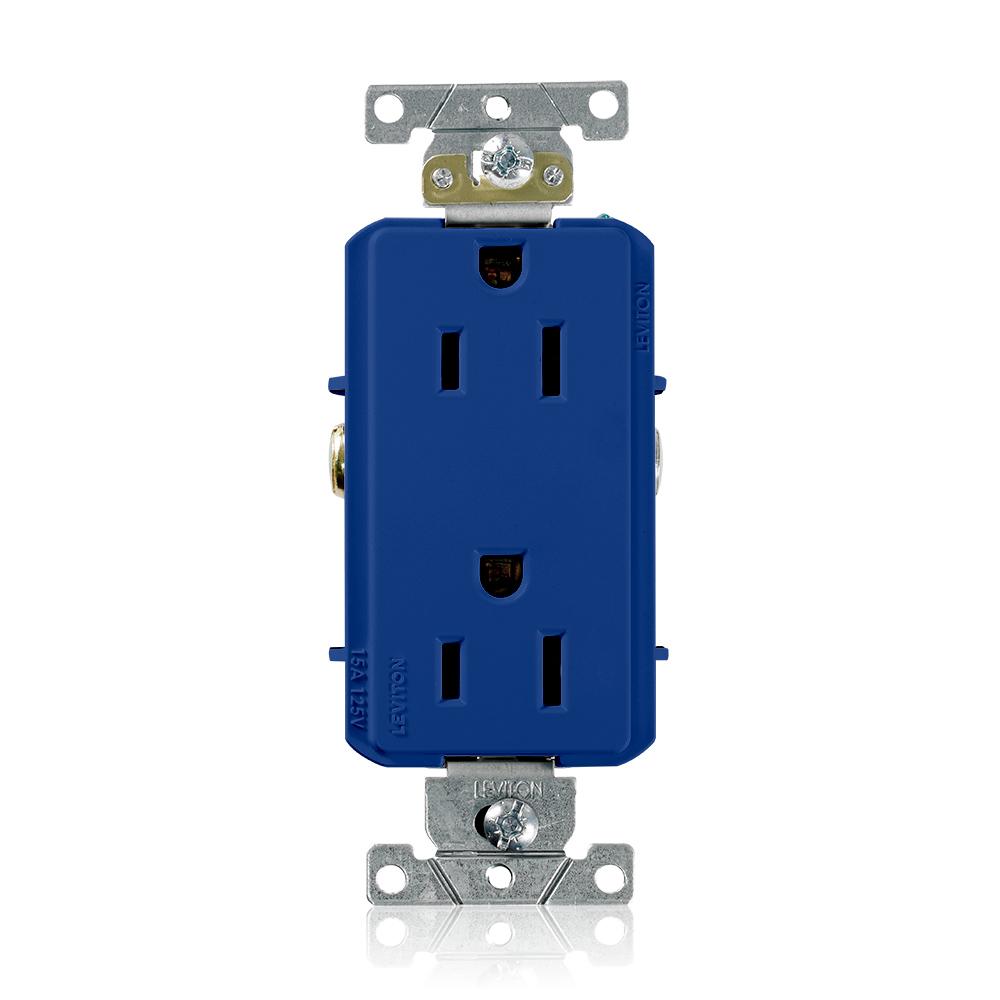

Leviton 16252 - Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back and Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding

Leviton - Switches, Dimmers, Outlets & Lighting Controls | Leviton Receptacles | Products |
SKU: 16252-W

$7.98
Unit price per
Save $-1.33

Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding.

Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Product Features

Standards and Certifications

ANSI: C-73
Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2 No.42
At Rated Voltage: 1/2 HP
Certification/Listing: cULus, NON-ANCE
RoHS: RoHS Compliant
Warranty: 10-Year Limited

AC Horsepower Ratings

Amperage: 15 A
At Rated Voltage: 1/2 HP
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 3000V min
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30°C temperature rise at full rated current
Voltage: 125 VAC
Wire: 3

Electrical Specifications

Amperage: 15 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 3000V min
Flammability: Rated V-2 per UL 94
Grounding: Self-Grounding
Operating Temperature: -40°C to 60°C
Pole: 2
Temperature Rise: Max 30°C temperature rise at full rated current
Voltage: 125 VAC
Wire: 3

Environmental Specifications

Body Material: PBT Polyester Blend
Clamp Nuts: Zinc-Plated Steel
Color: Red
Face Material: PBT Polyester Blend
Flammability: Rated V-2 per UL 94
Ground Clips: Brass-Plated
Grounding Screw: #8 Hex Head, Triple-Drive Brass
Line Contacts: 0.030" Phosphor Bronze
Operating Temperature: -40°C to 60°C

Strap Material: Steel (Galvanized G60)
Terminal Screws: #8 Triple-Drive Brass

Material Specifications

Body Material: PBT Polyester Blend
Color: Red
Face Material: PBT Polyester Blend
Ground Clips: Brass-Plated
Grounding Screw: #8 Hex Head, Triple-Drive Brass
Line Contacts: 0.030" Phosphor Bronze
Product ID: Ratings are permanently marked on device
Strap Material: Steel (Galvanized G60)
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: #8 Triple-Drive Brass
Termination: Back and Side Wire

Mechanical Specifications

Brand: Decora Plus
Color: Red
Device Type: Duplex Receptacle Outlet
Feature 4: Smooth Face
Grade: Heavy-Duty Industrial Specification Grade
NEMA: 5-15R
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back and Side Wire

Product Features

ANSI: C-73
Brand: Decora Plus
CSA C22.2 No. 42: File LR-406
Device Type: Duplex Receptacle Outlet
Feature 4: Smooth Face
Grade: Heavy-Duty Industrial Specification Grade
NEMA: 5-15R
NOM: 057
UL498: File E13399
Warranty: 10-Year Limited

Downloads

If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
