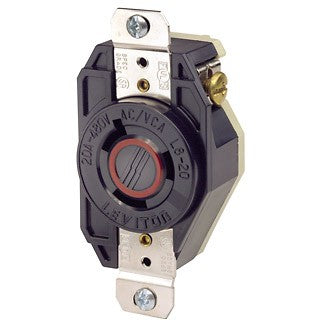

Leviton 2340 - 20 Amp, 480 Volt, NEMA L8-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK

Leviton 2340 - 20 Amp, 480 Volt, NEMA L8-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK

$24.70 USD
$24.70 USD $44.97 USD

LEV-2340

Size
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Will Call / Pick up

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

The Leviton 2340 is a 20 Amp, 480 Volt, NEMA L8-20R flush mount locking receptacle designed for demanding industrial environments. Part of the V-0-Max series, this 2-pole, 3-wire device features a rugged black body, precision-engineered for durability, grounding, and reliable high-voltage performance. It is ideal for commercial and industrial applications requiring secure and high-capacity connections.

Technical Specification

Model
2340
Device Type
Locking Receptacle
Brand
V-0-Max
Color
Black
Amperage
20 A
Voltage
480 VAC
NEMA
L8-20R
Poles
2
Wires
3
Grounding
Yes
Current Limiting
Full Rated Current
Dielectric Voltage
Withstands 2000V per UL498
Temperature Rise
Max 30°C after 250 cycles overload at 200% rated current
AC Horsepower Ratings
3 HP
Flammability Rating
Rated V-0 per UL 94
Operating Temperature
-40°C to 60°C
Body Material
Nylon
Base Material
Valox
Cover Material
Valox 357
Face Material
Ultramid
Ground Contacts
Brass
Grounding Screw
Chromated Brass
Line Contacts
Brass
Strap Material
Nickel-Plated Brass
Terminal Clamps
Nickel-Plated Brass
Terminal Screws
Chromated Brass
Cord Range
0.595 to 0.895 inches
Terminal Accommodation
14-8 AWG
Terminal ID
Marked on Device
Termination
Back & Side

Additional Information

  • Flush mount receptacle designed for 480V applications
  • Industrial grade performance for heavy-duty use
  • NEMA L8-20R configuration for twist-lock compatibility
  • High flame resistance with V-0 UL rating
