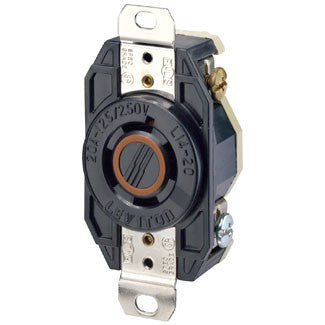

Leviton 2410 - 20 Amp, 125/250 Volt, NEMA L14-20R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK

Name: Leviton 2410 - 20 Amp, 125/250 Volt, NEMA L14-20R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Brand: Leviton
SKU: 2410
Price: 30.55 USD
Availability: InStock

From $30.55 USD

Size Single Box of 10

Product variants

Up to 36% off

$30.55 USD

$30.55 USD ~~$47.74 USD~~

Shipping calculated at checkout.

2410

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

20 Amp, 125/250 Volt, NEMA L14-20R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK

Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

Ideal for generators, transfer switches, welding equipment, and RV camper power

Product Features

AC Horsepower Ratings

At Rated Voltage: 2 HP L-L / 1 HP L-N

Electrical Specifications

Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125/250 VAC
Wire: 4

Environmental Specifications

Environment: Corrosive
Flammability: Rated V-0 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications

Base Material: Valox
Body Material: Nylon
Color: Black
Cover Material: Valox 357
Face Material: Ultramid
Ground Contacts: Brass
Grounding Screw: Chromated Brass
Line Contacts: Brass
Strap Material: Nickel-Plated Brass
Terminal Clamps: Nickel-Plated Brass

Terminal Screws: Chromated Brass

Mechanical Specifications

Cord Range: 0.595 to 0.895
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 14-8 AWG
Terminal ID: Marked on Device
Termination: Back & Side

Product Features

Base Material: Valox
Brand: V-0-Max
Color: Black
Device Type: Locking Receptacle
Face Material: Ultramid
NEMA: L14-20R
Warranty: Lifetime Limited

Standards and Certifications

ANSI: C-73
CSA: C22.2 No. 42
NEMA: WD-1 & WD-6
NOM: 057
UL: 498
UL Fed Spec: W-C-596

Warranty

Warranty: Lifetime Limited

Downloads

DIMENSIONAL DATA

INSTRUCTION SHEET

WIRING DIAGRAM
