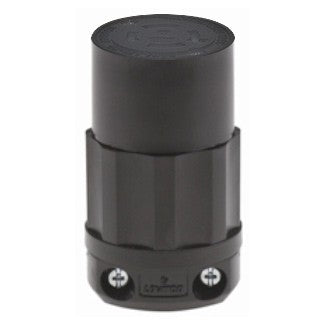

Leviton 2423 - 20 Amp, 250 Volt 3-Phase, NEMA L15-20R, 3P, 4W, Locking Connector, Industrial Grade, Grounding, All Black - BLACK

Name: Leviton 2423 - 20 Amp, 250 Volt 3-Phase, NEMA L15-20R, 3P, 4W, Locking Connector, Industrial Grade, Grounding, All Black - BLACK
Brand: Leviton
SKU: 2423
Price: 36.42 USD
Availability: InStock

$36.42 USD

Size Single Box of 10

Product variants

Up to 91% off

$36.42 USD

Shipping calculated at checkout.

2423

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

20 Amp, 250 Volt 3-Phase, NEMA L15-20R, 3P, 4W, Locking Connector, Industrial Grade, Grounding, All Black - BLACK

Leviton’s industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Product Features

AC Horsepower Ratings

At Rated Voltage: 3 HP

Electrical Specifications

Amperage: 20 A
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Phase: 3-Phase
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 250 VAC
Wire: 4

Environmental Specifications

Environment: Dry
Flammability: Rated HB or better UL94
Operating Temperature: -40°C to 60°C

Material Specifications

Assembly Screws: Steel, Zinc Plated
Back Cover: Thermoplastic
Blades/Contacts: Solid Brass
Body Material: Impact Modified Nylon
Clamp Insert: Nylon
Color: Black

Cord-Clamp: Nylon
Terminal Screws: Brass
Wire Module: Nylon

Mechanical Specifications

Cord Range: 0.560 to 0.775
Product ID: Ratings are permanently marked on device
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground
Wire Gauge: 14-10 AWG

Product Features

Brand: Black and White
Color: Black
Device Type: Locking Connector
NEMA: L15-20R

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13393
UL498: File E13393
Warranty: Limited Lifetime Warranty
