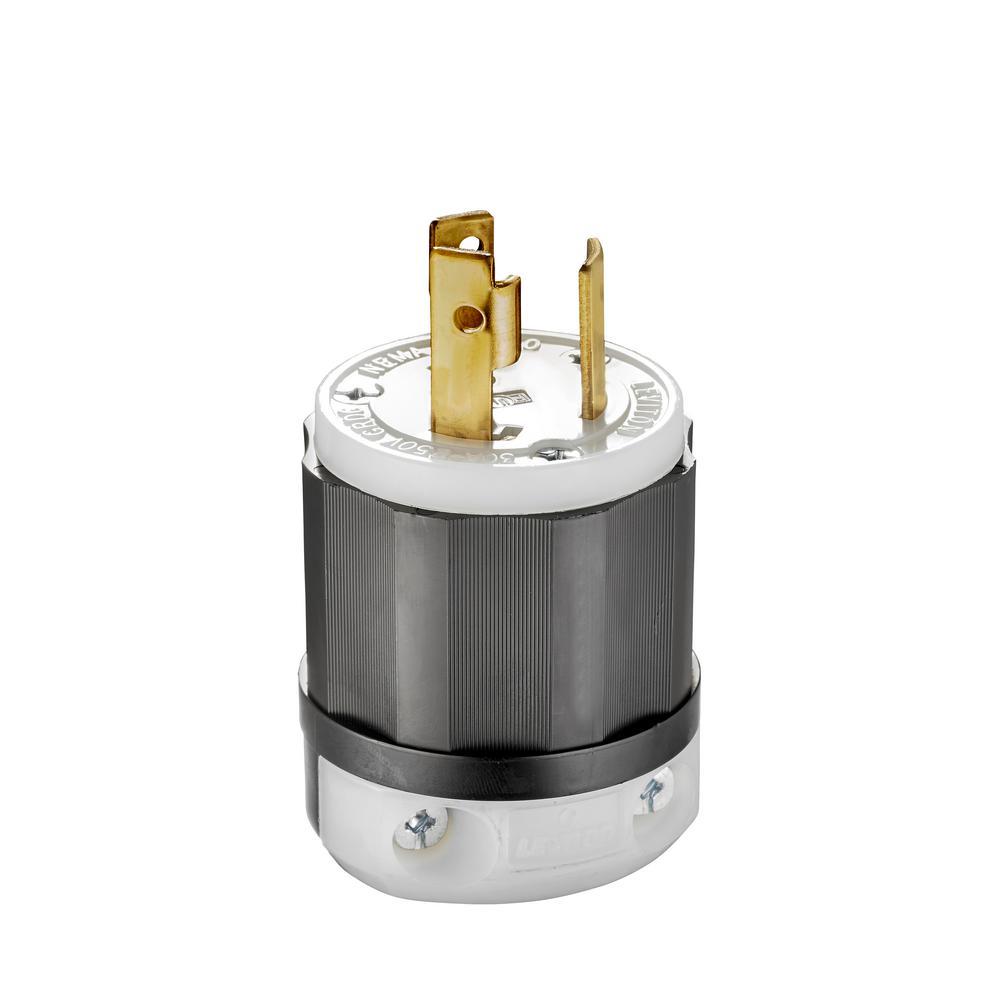

Leviton 2621 - Locking Plug, 30 Amp, 250 Volt, Industrial Grade - Black & White

Name: Leviton 2621 - Locking Plug, 30 Amp, 250 Volt, Industrial Grade - Black & White
Brand: Leviton
SKU: 2621
Price: 26.75 USD
Availability: InStock

2621

Size Single Box of 10

Product variants

$26.75 USD

$26.75 USD ~~$41.79 USD~~

Shipping calculated at checkout.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

30 Amp, 250 Volt, NEMA L6-30P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black/White

Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a lifetime warranty:

One piece contacts reduce friction and overheating
Unique cord clamp accepts wide range of cord sizes (.245"-.700")
Rugged nylon construction resists impact, sunlight, chemicals, and rough use
Industry exclusive lifetime warranty
Made proudly in the USA
Ideal for transfer switches, compressors, and generators

Product Features

AC Horsepower Ratings

At Rated Voltage: 2 HP

Electrical Specifications

Amperage: 30 A
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 250 VAC
Wire: 3

Environmental Specifications

Environment: Dry
Flammability: Rated HB or better UL94
Operating Temperature: -40°C to 60°C

Material Specifications

Assembly Screws: Steel, Zinc Plated
Back Cover: Thermoplastic
Blades/Contacts: Solid Brass
Body Material: Impact Modified Nylon
Clamp Insert: Nylon
Color: Black-White
Cord-Clamp: Nylon

Terminal Screws: Brass
Wire Module: Nylon

Mechanical Specifications

Cord Range: 0.520 to 0.930
Product ID: Ratings are permanently marked on device
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Torque Range: 10-14 in-lbs
Wire Gauge: 16-8 AWG

Product Features

Brand: Black and White
Color: Black-White
Device Type: Locking Plug
NEMA: L6-30P

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13393
UL498: File E13393
Warranty: Limited Lifetime
