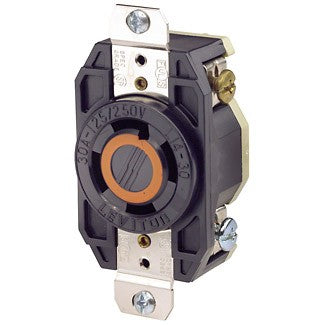

Leviton 2710 - 30 Amp, 125/250 Volt, NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK

Name: Leviton 2710 - 30 Amp, 125/250 Volt, NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Brand: Leviton
SKU: 2710
Price: 48.44 USD
Availability: InStock

From $48.44 USD

Size Single Box of 10

Product variants

Up to 36% off

$48.44 USD

$48.44 USD ~~$75.69 USD~~

Shipping calculated at checkout.

2710

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

30 Amp, 125/250 Volt, NEMA L14-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK

Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

Ideal for generators and transfer switches

Product Features

AC Horsepower Ratings

At Rated Voltage: 2 HP L-L / 2 HP L-N

Electrical Specifications

Amperage: 30 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125/250 VAC
Wire: 4

Environmental Specifications

Environment: Corrosive
Flammability: Rated V-0 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications

Base Material: Valox
Color: Black
Face Material: Ultramid
Grounding Screw: Chromated Brass
Line Contacts: Brass
Strap Material: Nickel-Plated Brass

Terminal Screws: Chromated Brass

Mechanical Specifications

Cord Range: 0.595 to 1.150
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 14-8 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Torque Range: 14 – 16 in-lbs

Product Features

Brand: V-0-Max
Color: Black
Device Type: Locking Receptacle
NEMA: L14-30R

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498: File E13399
Warranty: Limited Lifetime
