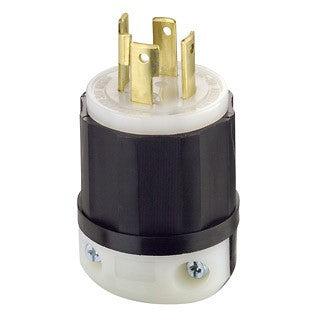

Leviton 2731 - 30 Amp, 480 Volt 3-Phase, NEMA L16-30P, 3P, 4W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE

Name: Leviton 2731 - 30 Amp, 480 Volt 3-Phase, NEMA L16-30P, 3P, 4W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE
Brand: Leviton
SKU: 2731
Price: 36.0 USD
Availability: InStock

From $36.00 USD

Size Single Box of 10

Product variants

Up to 45% off

$36.00 USD

$36.00 USD ~~$65.55 USD~~

Shipping calculated at checkout.

2731

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

30 Amp, 480 Volt 3-Phase, NEMA L16-30P, 3P, 4W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE

Leviton’s industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Product Features

AC Horsepower Ratings

At Rated Voltage: 10 HP

Electrical Specifications

Amperage: 30 A
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Phase: 3-Phase
Pole: 3
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 480 VAC
Wire: 4

Environmental Specifications

Environment: Dry
Flammability: Rated HB or better UL94
Operating Temperature: -40°C to 60°C

Material Specifications

Assembly Screws: Steel, Zinc Plated
Back Cover: Thermoplastic
Blades/Contacts: Solid Brass
Body Material: Impact Modified Nylon
Clamp Insert: Nylon
Color: Black-White

Cord-Clamp: Nylon
Terminal Screws: Brass
Wire Module: Nylon

Mechanical Specifications

Cord Range: 0.560 to 1.050
Product ID: Ratings are permanently marked on device
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Wire Gauge: 14-8 AWG

Product Features

Brand: Black and White
Color: Black-White
Device Type: Locking Plug
NEMA: L16-30P

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13393
UL498: File E13393
Warranty: Limited Lifetime
