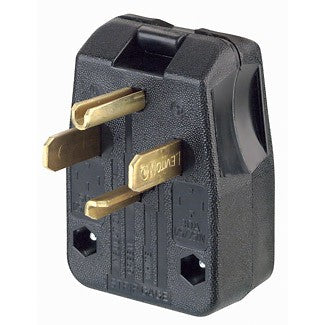

30/50 Amp, 125/250 Volt, NEMA 14-30P/14-50P, 3P, 4W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - Black
Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they’re ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
**This is a direct replacement of 275-T
Product Features
Electrical Specifications
Amperage: 30/50 A
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 3
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 125/250 VAC
Wire: 4
Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C
Material Specifications
Assembly Screws: Steel, Zinc Plated
Blades/Contacts: Brass
Body Material: Thermoplastic
Color: Black
Mechanical Specifications
Cord Range: .750 - 1.125
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 10-6 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Product Features
Color: Black
NEMA: 14-30P/14-50P
Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL498: File E13393
Warranty: 2-Year Limited
Downloads
DIMENSIONAL DATA
INSTRUCTION SHEET (ENGLISH, FRENCH, SPANISH)
WIRING DIAGRAM
