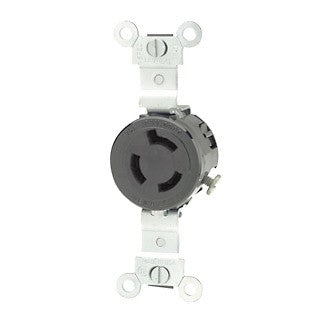

Leviton 4560 - 15 Amp, 250 Volt, NEMA L6-15R, 2P, 3W, Single Locking Receptacle, Industrial Grade, Grounding - BLACK

Name: Leviton 4560 - 15 Amp, 250 Volt, NEMA L6-15R, 2P, 3W, Single Locking Receptacle, Industrial Grade, Grounding - BLACK
Brand: Leviton
SKU: 4560
Price: 21.32 USD
Availability: InStock

From $21.32 USD

Size Single Box of 10

Product variants

Up to 36% off

$21.32 USD

$21.32 USD ~~$33.32 USD~~

Shipping calculated at checkout.

4560

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

15 Amp, 250 Volt, NEMA L6-15R, 2P, 3W, Single Locking Receptacle, Industrial Grade, Grounding - BLACK

Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

Product Features

AC Horsepower Ratings

At Rated Voltage: 1-1/2 HP

Electrical Specifications

Amperage: 15 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 250 VAC
Wire: 3

Environmental Specifications

Environment: Dry
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications

Body Material: Nylon
Color: Black
Face Material: Nylon
Grounding Screw: Brass 8-32
Line Contacts: Brass .031 Thick

Strap Material: Nickel-Plated Brass
Terminal Screws: Brass 10-32
Yoke: Zinc-Plated Steel

Mechanical Specifications

Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Side

Product Features

Color: Black
Device Type: Locking Receptacle
NEMA: L6-15R

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498: File E13399
Warranty: Limited Lifetime
