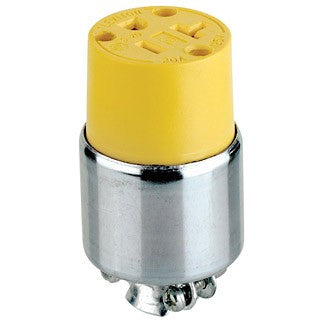

Leviton 520C - 20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Connector, Straight Blade, Commercial Grade, Grounding

Name: Leviton 520C - 20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Connector, Straight Blade, Commercial Grade, Grounding
Brand: Leviton
SKU: 520CV
Price: 10.4 USD
Availability: InStock

From $10.40 USD

Color Yellow Yellow/Steel Armor

Size Single Box of 10

Product variants

Up to 58% off

$10.40 USD

$10.40 USD ~~$23.50 USD~~

Shipping calculated at checkout.

520CV

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Connector, Straight Blade, Commercial Grade, Grounding

Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they’re ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Product Features

Electrical Specifications

Amperage: 20 A
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3

Environmental Specifications

Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications

Assembly Screws: Steel, Zinc Plated
Blades/Contacts: Brass
Body Material: PVC
Color: Yellow

Mechanical Specifications

Cord Range: .245 - .700
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 18-12 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Product Features

Color: Yellow
NEMA: 5-20R

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL498: File E13393
Warranty: 2-Year Limited
