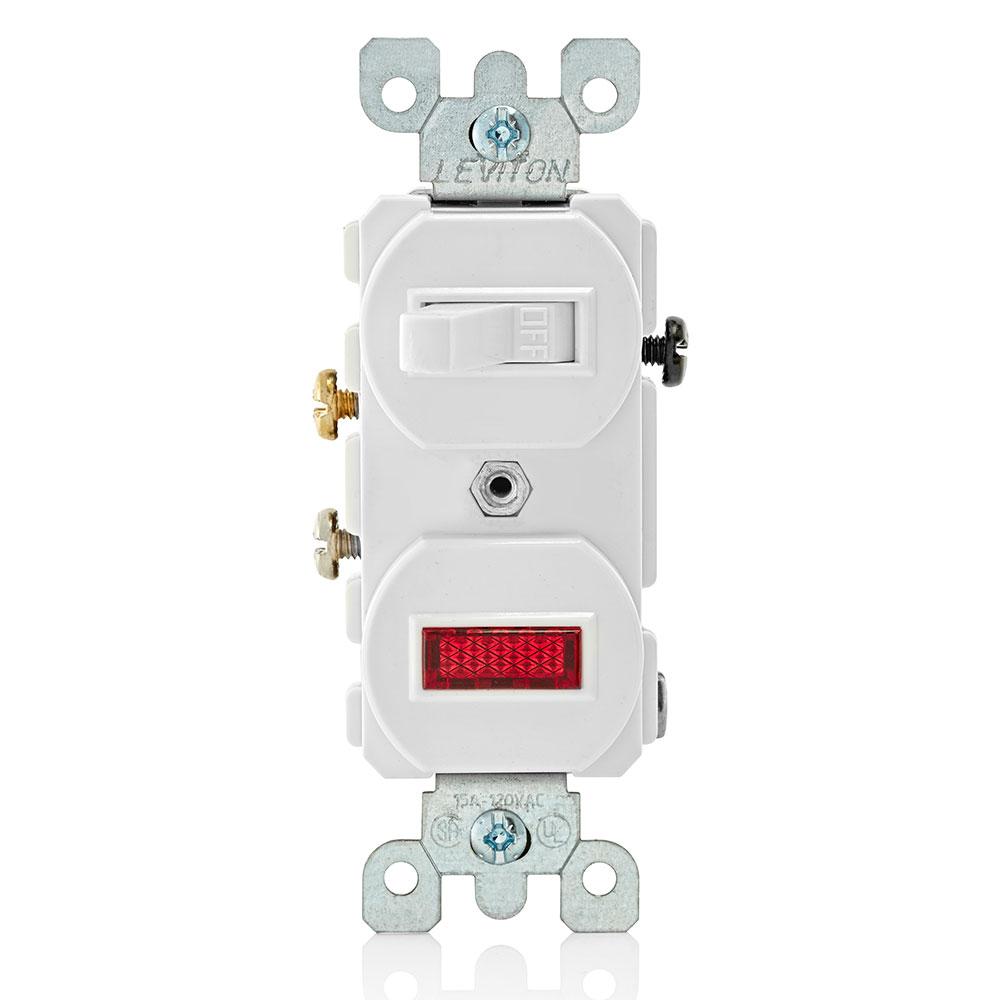

15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired - White
With Leviton’s extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and Tamper-Resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
AC Horsepower Ratings
HP Rating: 1/2HP-120V
Max. Amperage: 12 Amp
Electrical Specifications
Dielectric Voltage: Withstands 1500V for 1 minute
Grounding: Grounding
Neon Pilot Light Voltage: 120V AC
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
Pole: 1
Switch Amperage: 15 Amp
Switch Voltage: 120/277V AC
Temperature Rise: Maximum 30 degrees C rise
Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 65°C
Material Specifications
Actuator Material: Thermoplastic
Body Material: Thermoplastic
Color: White
Mechanical Specifications
Product ID: Stamped on Strap
Terminal Accom.: 14-12 AWG
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Side
Torque Range: 14 – 18 in.-lbs
Product Features
Amperage: 15 A
Color: White
Feature: Single-Pole / Neon Pilot
Product Type: Switch/Pilot Combo
Type: Duplex Style Combination Switch
Voltage: 120 VAC
Standards and Certifications
ANSI: C-73
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Standard: UL 20
Warranty: 2-Year Limited
