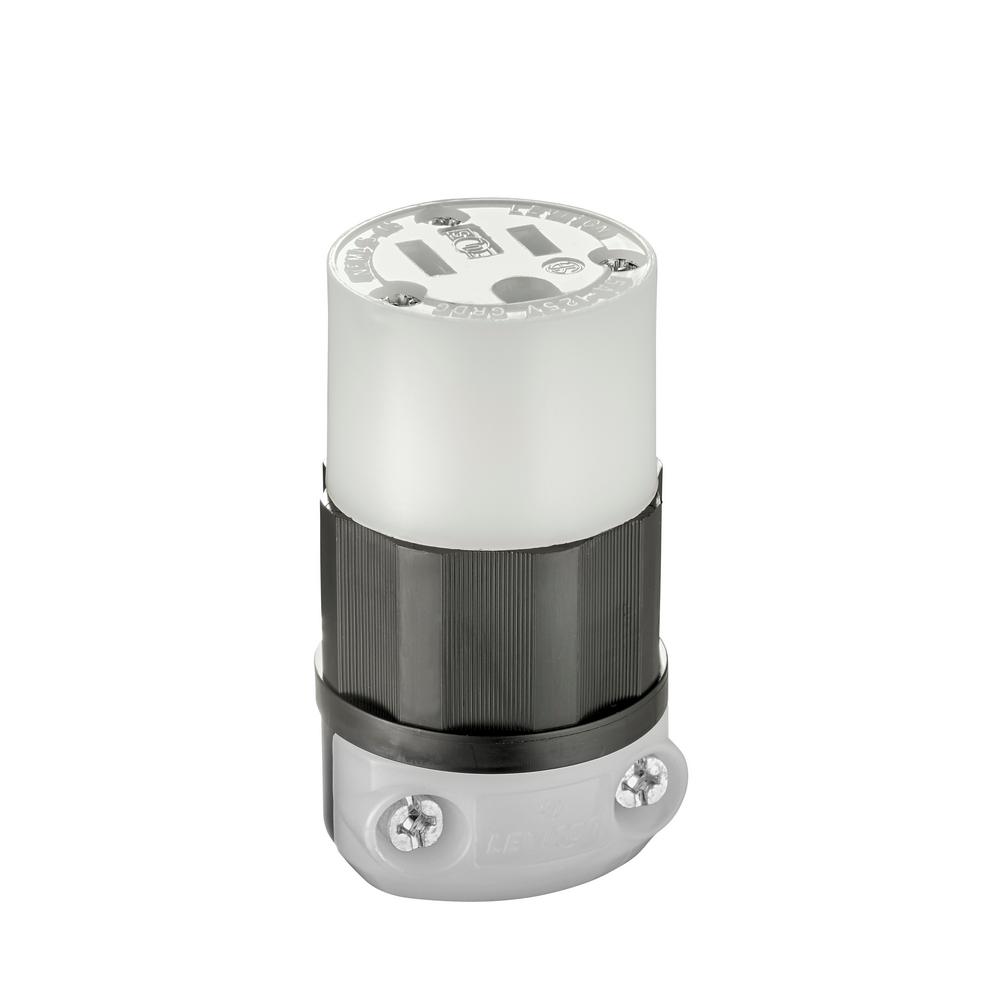

Leviton 5269-C - Straight Blade Connector, 15 Amp, 125 Volt, Industrial Grade - Black & White

Name: Leviton 5269-C - Straight Blade Connector, 15 Amp, 125 Volt, Industrial Grade - Black & White
Brand: Leviton
SKU: 5269-C
Price: 21.2 USD
Availability: InStock

From $21.20 USD

Size Single Box of 10

Product variants

Up to 36% off

$21.20 USD

$21.20 USD ~~$33.13 USD~~

Shipping calculated at checkout.

5269-C

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Connector, Straight Blade, Industrial Grade, Grounding - Black/White

Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a lifetime warranty:

One piece contacts reduce friction and overheating
Unique cord clamp accepts wide range of cord sizes (.245"-.700")
Rugged nylon construction resists impact, sunlight, chemicals, and rough use
Industry exclusive lifetime warranty
Made proudly in the USA
Ideal for extension cords and generators

Product Features

Electrical Specifications

Amperage: 15 A
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3

Environmental Specifications

Environment: Dry
Flammability: Rated HB or better UL94
Operating Temperature: -40°C to 60°C

Material Specifications

Assembly Screws: Steel, Zinc Plated
Back Cover: Thermoplastic
Blades/Contacts: Solid Brass
Body Material: Impact Modified Nylon
Clamp Insert: Nylon
Color: Black-White
Cord-Clamp: Nylon
Terminal Screws: Brass

Wire Module: Nylon

Mechanical Specifications

Cord Range: 0.230 to 0.685
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Torque Range: 12-14 in-lbs

Product Features

Brand: Black and White
Color: Black-White
Device Type: Straight Blade Connector
NEMA: 5-15R

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL 498: File E13399
UL Fed Spec WC-596: File E13393
Warranty: Limited Lifetime

Downloads

DIMENSIONAL DATA

3D MODEL

INSTRUCTION SHEET
