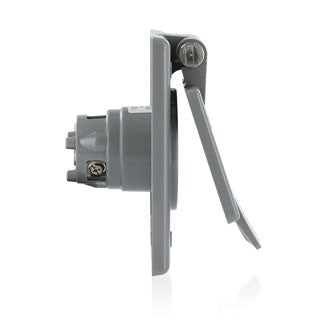

Leviton 5278-CWP - 15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Power Inlet Receptacle, Straight Blade, Industrial Grade, Grounding, , Standard Wire Wells Wired, Nylon Strap - Gray

Name: Leviton 5278-CWP - 15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Power Inlet Receptacle, Straight Blade, Industrial Grade, Grounding, , Standard Wire Wells Wired, Nylon Strap - Gray
Brand: Leviton
SKU: 5278-CWP
Price: 39.99 USD
Availability: InStock

From $39.99 USD

Size Single Box of 10

Product variants

Up to 52% off

$39.99 USD

$39.99 USD ~~$82.81 USD~~

Shipping calculated at checkout.

5278-CWP

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

15 Amp, 125 Volt, NEMA 5-15P, 2P, 3W, Power Inlet Receptacle, Straight Blade, Industrial Grade, Grounding, , Standard Wire Wells Wired, Nylon Strap, - Gray

Leviton's Straight Blade Power Inlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.

Product Features

AC Horsepower Ratings

At Rated Voltage: 1/2 HP

Electrical Specifications

Amperage: 15 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 1500V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3

Environmental Specifications

Environment: Dry
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications

Body Material: Nylon
Color: Gray
Cover and Plate Material: Glass-Filled Thermoplastic
Face Material: Nylon

Grounding Screw: Brass 8-32
Line Contacts: Brass
Strap Material: Nylon
Terminal Screws: Brass 10-32

Mechanical Specifications

Product ID: Markings are permanently marked on device
Terminal Accom.: 18-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Standard Wire Wells

Product Features

Color: Gray
Device Type: Straight Blade Flanged Inlet
NEMA: 5-15P

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File LR-16347
NEMA: WD-6
NOM: 057
UL498: File E13393

Downloads

DIMENSIONAL DATA

WIRING DIAGRAM

INSTRUCTION SHEET
