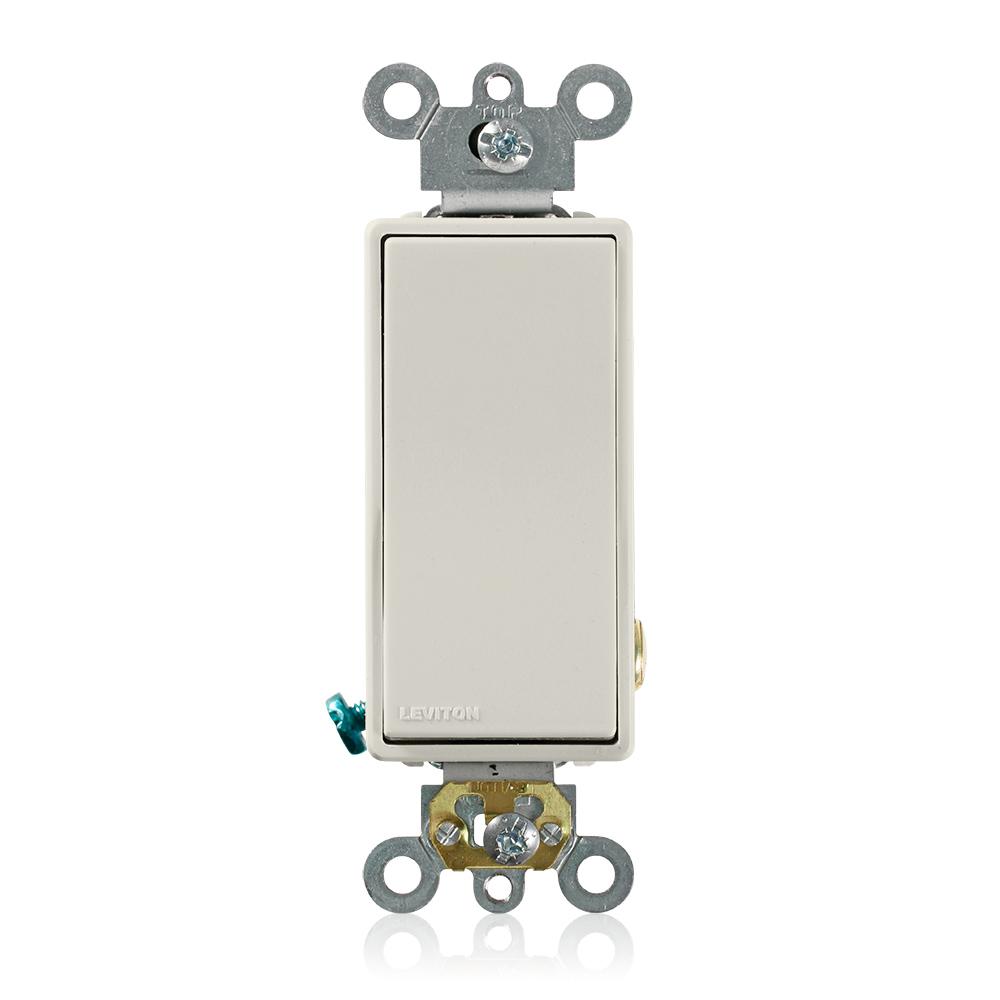

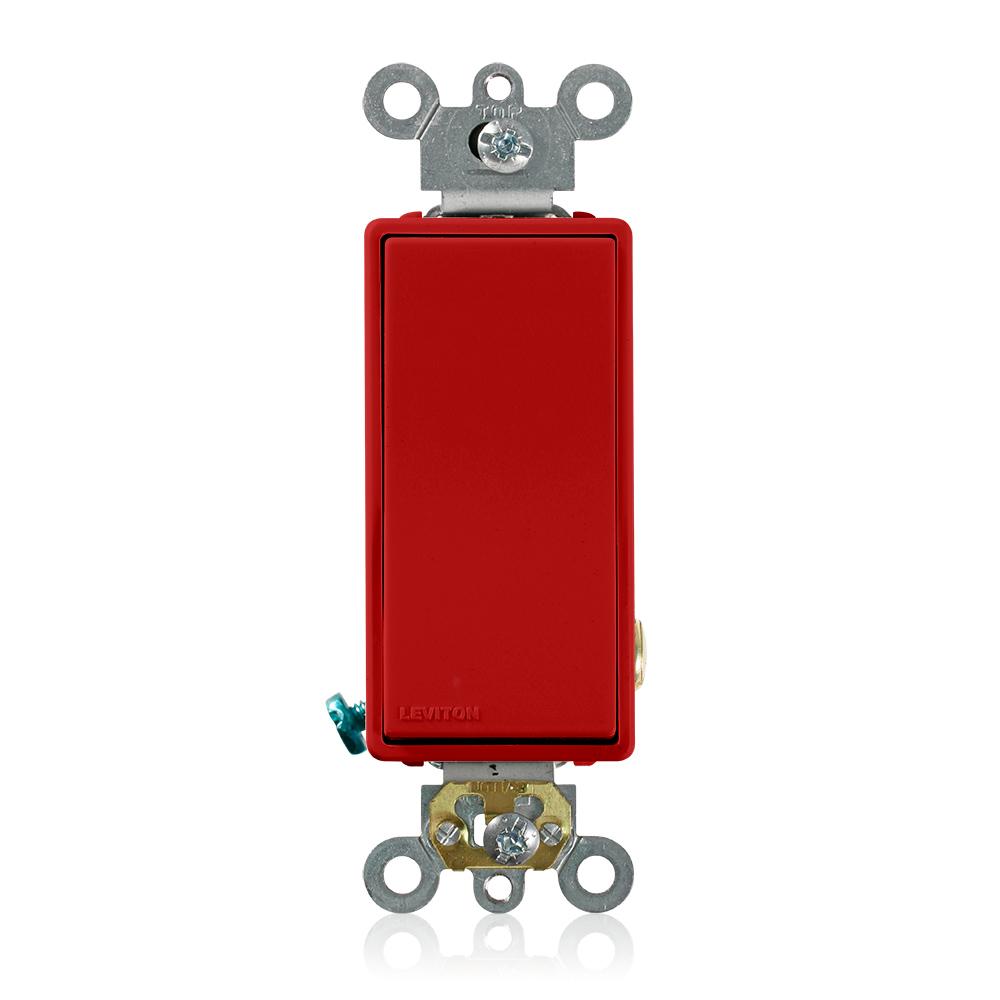

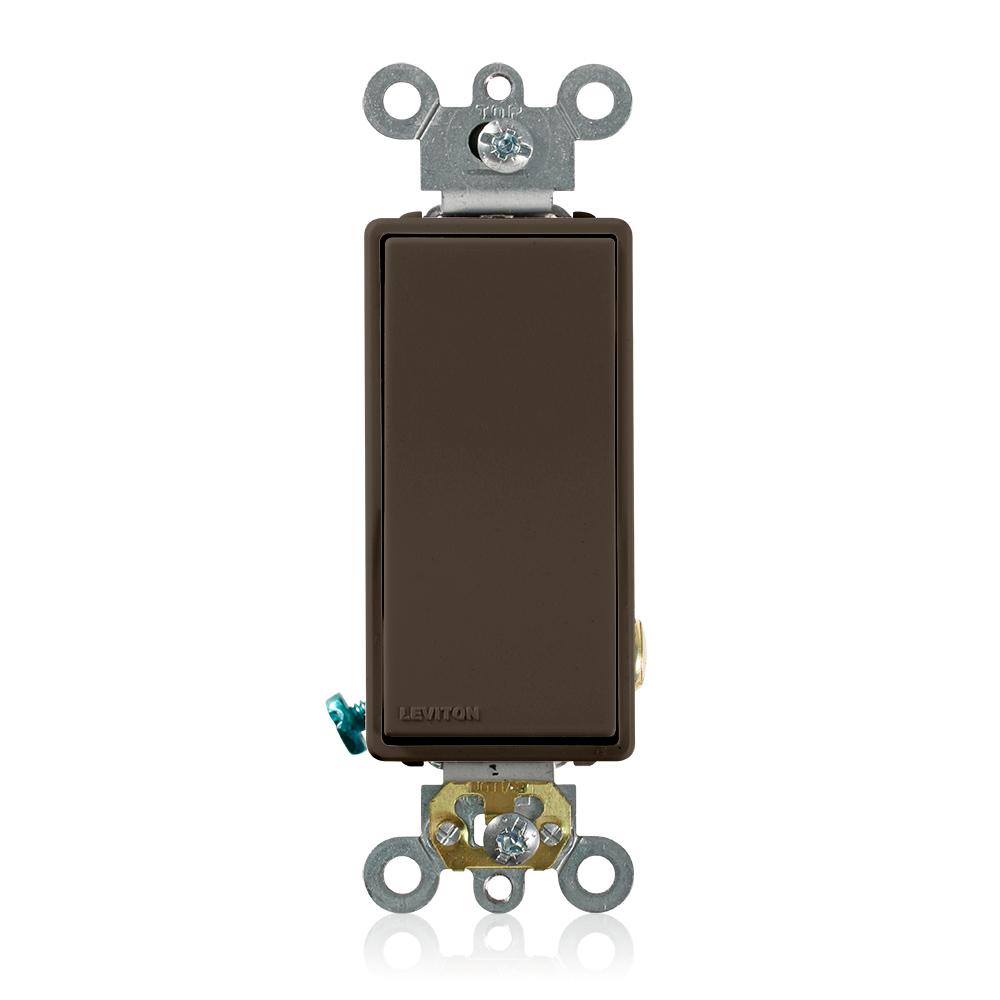

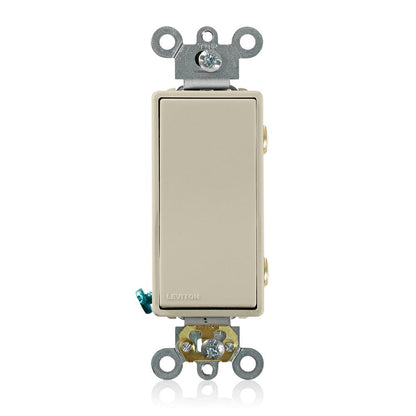

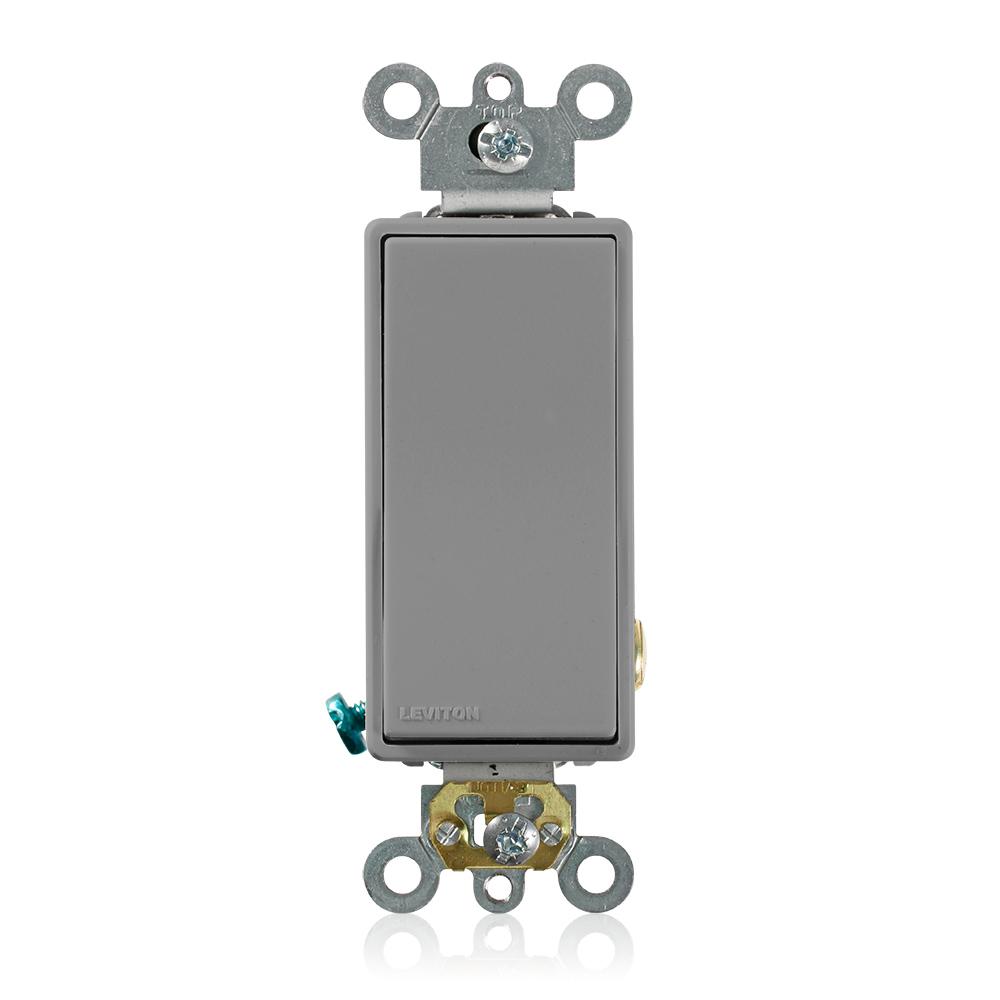

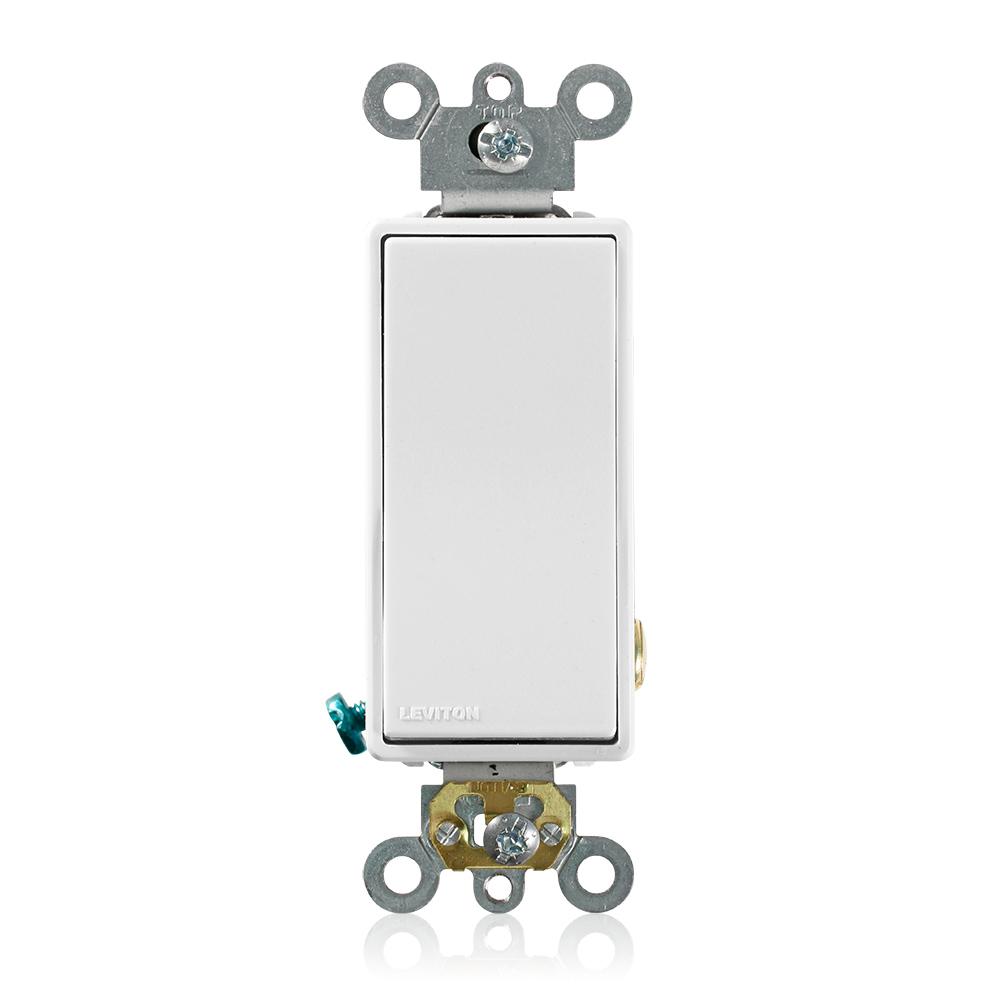

Leviton 5624 - 20 Amp, 120/277 Volt, Decora Plus Rocker 3-Way AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired

Name: Leviton 5624 - 20 Amp, 120/277 Volt, Decora Plus Rocker 3-Way AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired
Brand: Leviton
SKU: 5624-2W
Price: 39.66 USD
Availability: InStock

From $39.66 USD

Color White Ivory Light Almond Black Brown Gray Red

Quantity Single Box of 10

Product variants

Up to 56% off

$39.66 USD

$39.66 USD ~~$89.57 USD~~

Shipping calculated at checkout.

5624-2W

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

20 Amp, 120/277 Volt, Decora Plus Rocker 4-Way AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - White

Decora® brand Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.

Product Features

AC Horsepower Ratings

HP Rating: 1HP-120V 2HP-240V
Max. Amperage: 16 Amp

Electrical Specifications

Amperage: 20 A
Dielectric Voltage: Withstands 1500V for 1 minute
Endurance: 50,000 cycles minimum
Grounding: Self-Grounding
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
Temperature Rise: Maximum 30 degrees C rise
Voltage: 120/277 VAC

Environmental Specifications

Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 65°C

Material Specifications

Actuator Material: Thermoplastic
Body Material: Thermoplastic Polyester
Color: White
Strap Material: Steel

Mechanical Specifications

Product ID: Stamped on Strap

Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Back or Side Wire
Torque Range: 12-14 inch pounds

Product Features

Brand: Decora Plus
Color: White
Device Type: Rocker Switch
Function: 4-Way
Grade: Commercial Specification Grade

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Standard: UL 20
Warranty: 10-Year Limited
