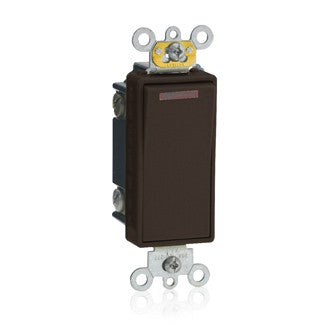

Leviton 5628 - 20 Amp, 120 Volt, Decora Plus Rocker Pilot Light - Illuminated ON - Req. Neutral Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired
Leviton 5628 - 20 Amp, 120 Volt, Decora Plus Rocker Pilot Light - Illuminated ON - Req. Neutral Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired
5628-2W
Regular price
$17.47 USD
Sale price
$17.47 USD
Regular price
$39.46 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Payment methods
20 Amp, 120 Volt, Decora Plus Rocker Pilot Light - Illuminated ON - Req. Neutral Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired
Decora Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
Product Features
AC Horsepower Ratings
HP Rating: 1HP-120VMax. Amperage: 16 Amp
Electrical Specifications
Amperage: 20 ADielectric Voltage: Withstands 1500V for 1 minute
Endurance: 50,000 cycles minimum
Grounding: Self-Grounding
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
Temperature Rise: Maximum 30 degrees C rise
Voltage: 120 VAC
Environmental Specifications
Flammability: Rated V-2 per UL 94Operating Temperature: -40°C to 65°C
Material Specifications
Actuator Material: ThermoplasticBody Material: Thermoplastic
Color: White
Strap Material: Steel
Mechanical Specifications
Product ID: Stamped on StrapTerminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Back or Side Wire
Torque Range: 12-14 inch pounds
Brand: Decora Plus
Color: White
Device Type: Rocker Switch
Feature: Pilot Light – Illuminated ON
Function: Single-Pole
Grade: Commercial Specification Grade
Grounding: Self-Grounding
Voltage: 120 VAC
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Standard: UL 20
Warranty: 10-Year Limited
Termination: Back or Side Wire
Torque Range: 12-14 inch pounds
Product Features
Body Material: ThermoplasticBrand: Decora Plus
Color: White
Device Type: Rocker Switch
Feature: Pilot Light – Illuminated ON
Function: Single-Pole
Grade: Commercial Specification Grade
Grounding: Self-Grounding
Voltage: 120 VAC
Standards and Certifications
ANSI: C-73CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Standard: UL 20
Warranty: 10-Year Limited
