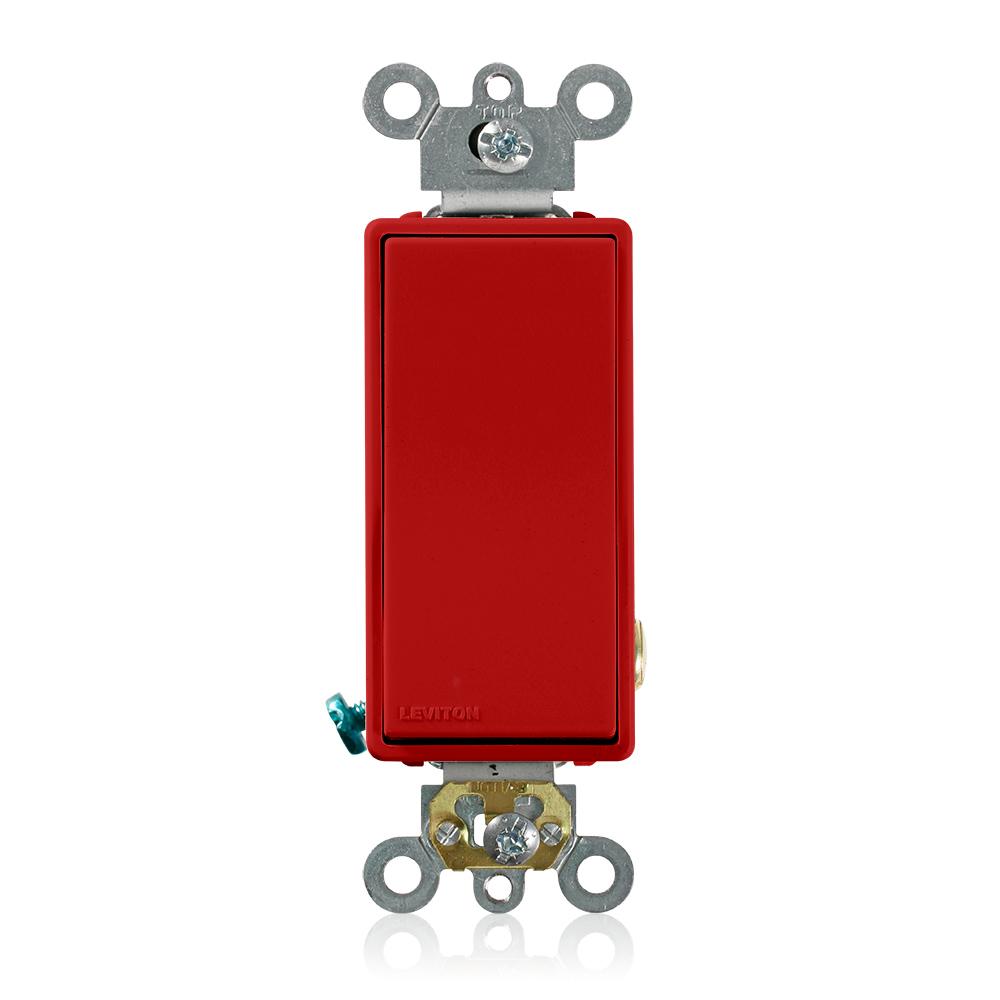

Leviton 5657 - 15 Amp, 120/277 Volt, Decora Plus Rocker Double-Throw Ctr-OFF Momentary Contact Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired

Name: Leviton 5657 - 15 Amp, 120/277 Volt, Decora Plus Rocker Double-Throw Ctr-OFF Momentary Contact Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired
Brand: Leviton
SKU: 5657-2W
Price: 45.78 USD
Availability: InStock

From $45.78 USD

Color White Ivory Light Almond Black Brown Gray

Quantity Single Box of 10

Product variants

Up to 45% off

$45.78 USD

$45.78 USD ~~$83.36 USD~~

Shipping calculated at checkout.

5657-2W

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

15 Amp, 120/277 Volt, Decora Plus Rocker Double-Throw Ctr-OFF Momentary Contact Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired

Decora Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.

Product Features

AC Horsepower Ratings

HP Rating: 1/2HP-120V 2HP-240V-277V
Max. Amperage: 12 Amp

Electrical Specifications

Amperage: 15 A
Dielectric Voltage: Withstands 1500V for 1 minute
Endurance: 30,000 cycles minimum
Grounding: Self-Grounding
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
Temperature Rise: Maximum 30 degrees C rise
Voltage: 120/277 VAC

Environmental Specifications

Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 65°C

Material Specifications

Actuator Material: Thermoplastic
Body Material: Thermoplastic
Color: White
Strap Material: Steel

Mechanical Specifications

Product ID: Stamped on Strap
Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired

Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Back or Side Wire
Torque Range: 12-14 inch pounds

Product Features

Brand: Decora Plus
Color: White
Device Type: Rocker Switch
Feature: Momentary Contact CTR OFF
Function: Single-Pole Double-Throw
Grade: Commercial Specification Grade
Grounding: Self-Grounding
HP Rating: 1/2HP-120V 2HP-240V-277V
Voltage: 120/277 VAC

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Standard: UL 20
Warranty: 10-Year Limited
