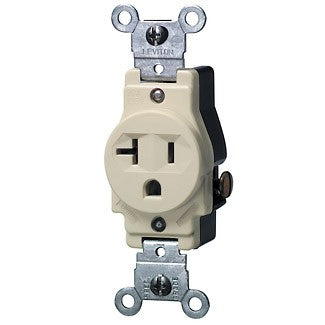

Leviton 5801 - Single Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Grounding

Leviton 5801 - Single Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Grounding

$3.73 USD
$3.73 USD $6.80 USD

LEV-5801-W

Color
Quantity
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Will Call / Pick up

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

Leviton 5801 is a Commercial Specification Grade Single Receptacle Outlet featuring a smooth, indented face design. Rated for 20 Amps and 125 Volts, it supports side wire termination and grounding. Built with durable nylon materials and heavy-duty components, this device is designed for demanding commercial environments such as hotels, schools, hospitals, and office buildings.

Technical Specification

Model
Leviton 5801
Type
Single Receptacle Outlet
Amperage
20 A
Voltage
125 VAC
Pole
2
Wire
3-Wire
Grounding
Grounding
Termination
Side Wire
Face
Indented, Smooth
Body Material
Nylon
Face Material
Nylon
Strap Material
Zinc-Plated Steel
Horsepower Rating
1 HP
Operating Temperature
-40°C to 60°C
Color
White

Additional Information

  • Current limiting at full rated current
  • Dielectric withstands 2000V per UL498
  • Maximum 30°C temperature rise after 100 overload cycles at 150% rated current
  • Line contacts: Brass double wipe, .031" thick
  • Grounding screw: Brass 8-32
  • Terminal screws: Brass 8-32
  • Terminal accommodation for 14-10 AWG wiring
  • Certified to ANSI C-73, CSA C22.2 No. 42, NEMA WD-2 & WD-6, NOM, UL Fed Spec WC-596, and UL 498
