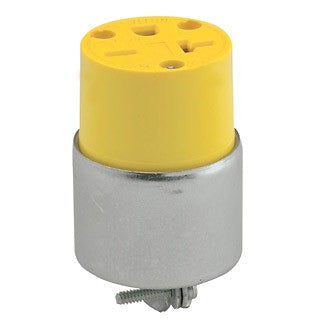

Leviton 620C - 20 Amp, 250 Volt, NEMA 6-20R, 2P, 3W, Connector, Straight Blade, Grounding

Leviton 620C - 20 Amp, 250 Volt, NEMA 6-20R, 2P, 3W, Connector, Straight Blade, Grounding

$10.51 USD
$10.51 USD $23.74 USD

LEV-620CV

Color
Size
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Need Help?

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

The Leviton 620C is a 20 Amp, 250 Volt straight blade connector with NEMA 6-20R configuration. Engineered for durability in commercial environments, it features a moisture-resistant, impact-resistant PVC body and deep-slotted backed-out terminal screws for secure backwiring. Ideal for both indoor and outdoor use in demanding settings.

Technical Specification

Model
620C
Device Type
Connector, Straight Blade
Color
Yellow
Amperage
20 A
Voltage
250 VAC
NEMA
6-20R
Poles
2
Wires
3
Grounding
Yes
Current Interrupting
Certified for full rated current
Dielectric Voltage
Withstands 2000V per UL498
Temperature Rise
Max 30°C after 50 cycles overload at 150% rated current
Flammability Rating
Rated V-2 per UL 94
Operating Temperature
-40°C to 60°C
Body Material
PVC
Blades/Contacts
Brass
Assembly Screws
Steel, Zinc Plated
Cord Range
0.245 to 0.655 inches
Terminal Accommodation
18-12 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral

Additional Information

  • Commercial grade construction ideal for harsh indoor or outdoor use
  • Moisture-, dirt-, and chemical-resistant PVC housing
  • Secure, backed-out terminal screws ensure solid wire retention
  • Permanently marked ratings and NEMA ID
