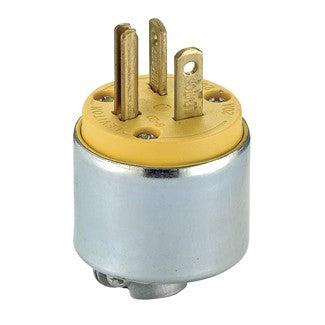

Leviton 620P - 20 Amp, 250 Volt, NEMA 6-20P, 2-Pole, 3-Wire Grounding Plug, Straight Blade, Commercial Grade, Armored

Name: Leviton 620P - 20 Amp, 250 Volt, NEMA 6-20P, 2-Pole, 3-Wire Grounding Plug, Straight Blade, Commercial Grade, Armored
Brand: Leviton
SKU: 620PV
Price: 6.79 USD
Availability: InStock

From $6.79 USD

Color Yellow Yellow/Steel Armor

Size Single Box of 10

Product variants

Up to 61% off

$6.79 USD

$6.79 USD ~~$12.37 USD~~

Shipping calculated at checkout.

620PV

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

20 Amp, 125 Volt, NEMA 5-20P, 2-Pole, 3-Wire Grounding Plug, Straight Blade

Product Features

Electrical Specifications

Amperage: 20 A
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 250 VAC
Wire: 3

Environmental Specifications

Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications

Assembly Screws: Steel, Zinc Plated
Blades/Contacts: Brass
Body Material: PVC / Steel
Color: Yellow

Mechanical Specifications

Cord Range: .245 - .655
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal Accom.: 18-12 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Product Features

Color: Yellow
Cord Range: .245 - .655
NEMA: 6-20P

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL498: File E13393
Warranty: 2-Year Limited
