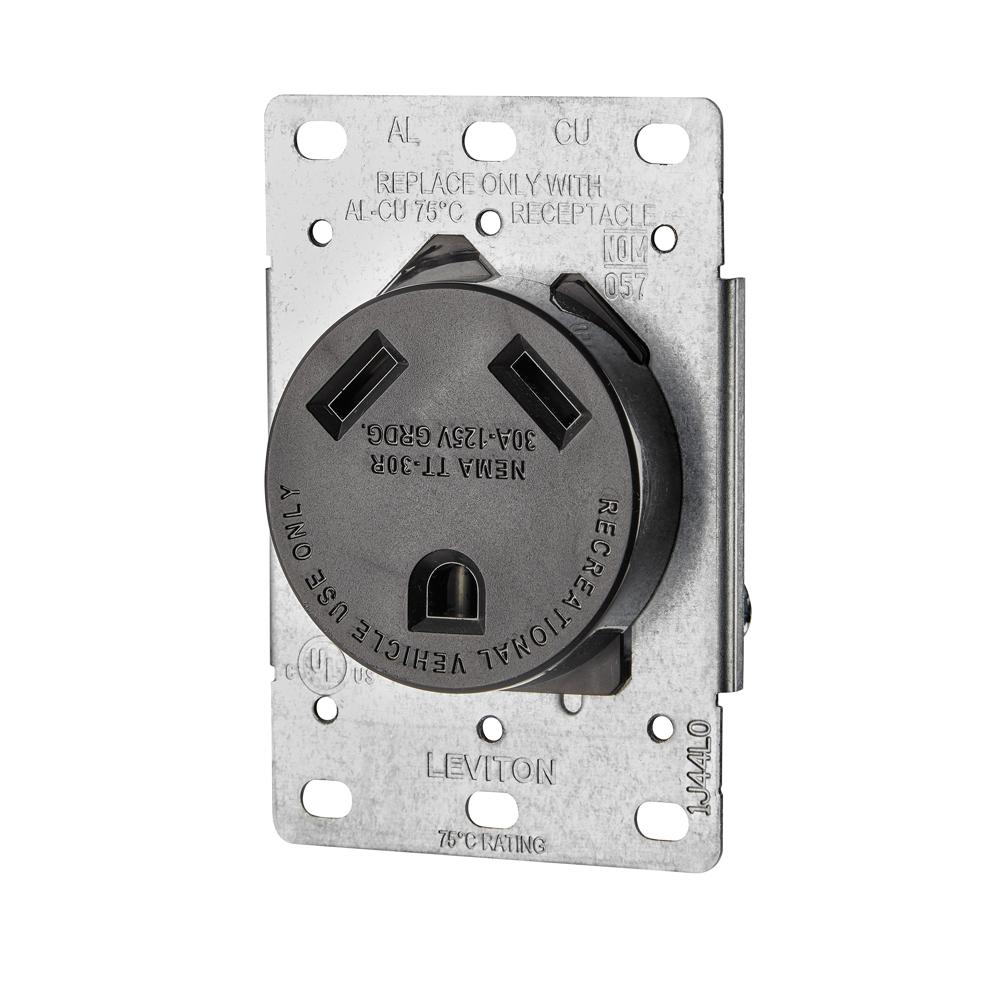

30 Amp, 125 Volt, NEMA TT-30R, 2P, 3W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, (For Recreational Vehicles), Side Wired, Steel Strap - Black
WARNING: Do not use with single-gang wallboxes, single-gang mud rings or single-gang box extenders.
Built of durable thermoplastic, Leviton Power Receptacles — come equipped with heavy-gauge, double-wire copper alloy contacts. Flush mount receptacles fit Leviton’s wide range of 2.15”- diameter wallplates and mounting hardware is included. For use in Recreational Vehicles.
Technical Information
AC Horsepower Ratings
At Rated Voltage: 2 HP
Electrical Specifications
Amperage: 30 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3
Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C
Material Specifications
Body Material: Thermoplastic
Color: Black
Face Material: Thermoplastic
Line Contacts: Brass Double-Wipe
Strap Material: Galvanized Steel
Mechanical Specifications
Product ID: Ratings are permanently marked on device
Terminal Accom.: Up to 4 AWG
Terminal ID: Brass screw = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
Product Features
Color: Black
NEMA: TT-30R
Standards and Certifications
ANSI: C73
CSA: 22.2 No 42, C22.2 No.14, C22.2 No.65
File: E13399
NEMA: WD-6
NOM: NOM - ANCE
UL: UL 498, UL 486E
Warranty: 10-Year Limited
