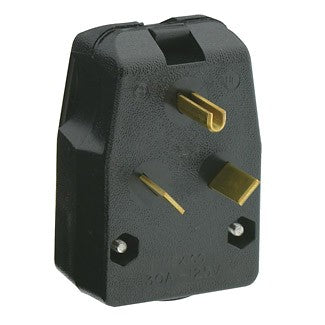

30 Amp, 125 Volt, NEMA TT-30P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Angle, Grounding - Black
Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they’re ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
**This is a direct replacement of 830-T
Product Features
AC Horsepower Ratings
At Rated Voltage: 2 HP
Electrical Specifications
Amperage: 30 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3
Environmental Specifications
Operating Temperature: -40°C to 60°C
Material Specifications
Assembly Screws: Steel, Zinc Plated
Blades/Contacts: Brass
Body Material: Thermoplastic
Color: Black
Mechanical Specifications
Cord Range: .687 - .875
Product ID: Ratings are permanently marked on device
Terminal Accom.: 10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Product Features
Color: Black
NEMA: TT-30P
Warranty: 2-Year Limited
Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File 152105
NEMA: WD-6
NOM: 057
UL498: File E13399
Warranty: 2-Year Limited
Downloads
DIMENSIONAL DATA
INSTRUCTION SHEET (ENGLISH, FRENCH, SPANISH)
WIRING DIAGRAM
